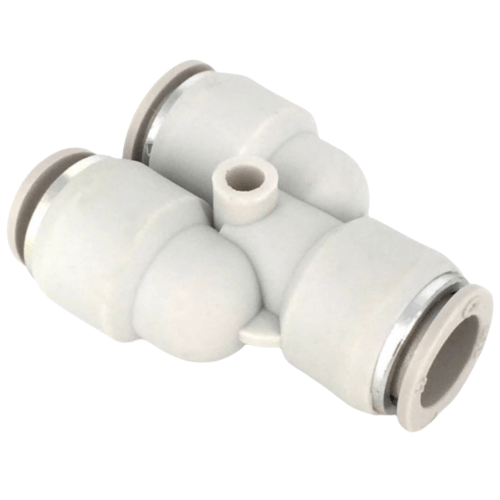

Airtac X-APY Connector - Y-Type Tee X-APY12
$3.79
Regular price
$11.29
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APY12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APY12 Y-Type Tee Fitting Technical Details
- Model: X-APY12
- Type: Y-shaped pneumatic tee connector
- Material: Nickel-plated brass (standard)
- Port configuration: 3-way equal diameter
- Thread standards: PT1/8 (BSPP), NPT1/8, G1/8 options
- Pressure range: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Flow coefficient (Cv): 0.15
- Surface treatment: Electrostatic epoxy coating
- Weight: 48g ±2g
- Dimensions: 23mm(L) × 19mm(W) × 25mm(H)
- Torque resistance: ≤2.5N·m during installation
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined Y-connector with 120° branch angle for optimized airflow distribution. Features anti-corrosion plating and leak-proof design with integrated O-ring seals. Ideal for creating compact pneumatic networks requiring balanced pressure distribution.
Common Applications:
- Modular pneumatic circuit branching in automation cells
- Tool changer manifold systems in CNC machines
- Medical gas line distribution units
- Multi-axis robotic end effector controls
- Compressed air sampling systems
Installation guidelines:
Apply PTFE tape clockwise on male threads (2-3 wraps max).
Use two wrenches - one to hold base port while tightening branches.
Avoid cross-threading by hand-starting all connections.
Maintenance:
Inspect seals every 6 months in continuous operation.
Use pneumatic system lubricant (ISO VG32) if air lines are lubricated.
Maximum re-torque cycles: 5 times before seal replacement recommended.
| Property | Property Value |
|---|---|
| sku | X-APY12 |
