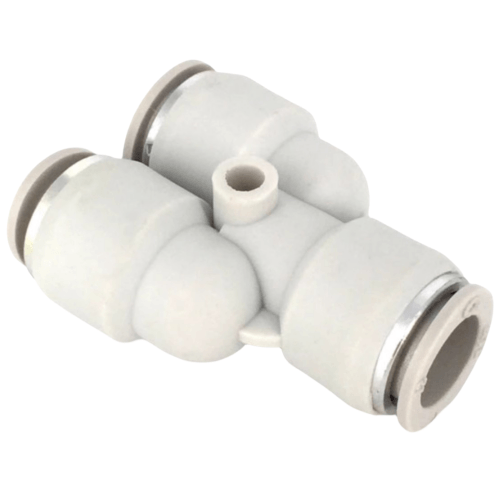

Airtac X-APY Connector - Y-Type Tee X-APY14
$6.73
Regular price
$14.23
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APY14
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APY14 Y-Type Tee Fitting Technical Details
- Model: X-APY14
- Type: Brass Y-shaped pneumatic tee connector
- Thread standard: Metric (M5×0.8) & PT1/8 (BSPP)
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-rings
- Pressure range: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃
- Flow coefficient (Cv): 0.45
- Leakage rate: ≤3 bubbles/min (ISO 6952 test)
- Weight: 28±2g
- Dimensions: 25mm(L) × 25mm(W) × 20mm(H)
- Surface treatment: Electroless nickel plating (5-8μm)
- Vibration resistance: 10-2000Hz, 15G acceleration
Precision-machined Y-connector with triple-port configuration (1 inlet, 2 outlets at 120° angle) for compact pneumatic distribution. Features dual-thread compatibility and anti-vibration grooves. Meets ISO 1179-1 standard for industrial air systems.
Primary Applications:
- Branching pneumatic circuits in automation equipment
- Vacuum system manifold connections
- Medical device gas line distribution
- Robotic end-effector air supply networks
- Compressed air instrumentation systems
Installation guidelines:
Apply 3-5 wraps of PTFE tape on male threads (do not over-tighten beyond 1.5Nm torque).
Ensure branch ports face downward in vertical installations to prevent moisture accumulation.
Compatible with Φ4mm-Φ12mm polyurethane/nylon tubing via push-in fittings.
Avoid using with:- Corrosive gases (HCl, SO₂)
- High-viscosity fluids (>ISO VG68)
- Pulsation frequencies above 5Hz without dampers
| Property | Property Value |
|---|---|
| sku | X-APY14 |
