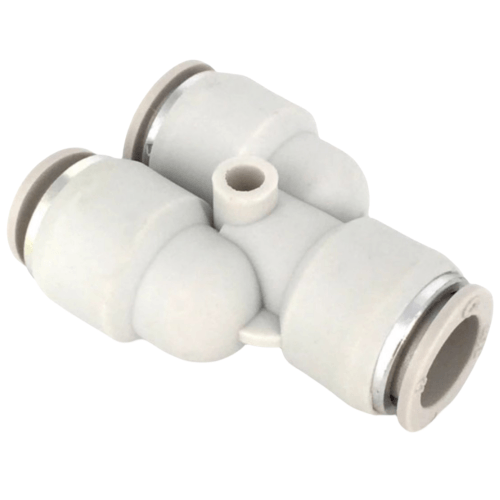

Airtac X-APY Connector - Y-Type Tee X-APY16
AirTAC X-APY16 Y-Type Tee Fitting Technical Details
- Model: X-APY16
- Type: Y-shaped three-way pneumatic connector
- Thread standard: PT1/8 (BSPP) / NPT1/8 optional
- Material: Nickel-plated brass (C3604)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -5℃ to 80℃ (23℉ to 176℉)
- Seal material: NBR (Nitrile rubber)
- Surface roughness: Ra ≤3.2μm
- Proof pressure: 2.25 MPa (326 psi)
- Weight: 32g ±2g
- Dimensions: 28mm (L) × 24mm (W) × 24mm (H)
- Flow coefficient (Cv): 0.65
- Leakage rate: ≤3 bubbles/min (ISO 6952)
- Certifications: RoHS compliant, ISO 9001
Precision-engineered Y-connector featuring 120° angled flow paths for optimized air distribution. The electroplated brass construction provides corrosion resistance in humid environments. Designed with tapered thread seats to prevent air leakage during high-frequency switching operations.
- Pneumatic circuit branching in automation equipment
- Air compressor manifold systems
- Simultaneous actuator control circuits
- Vacuum generator supply lines
- Medical gas distribution panels
- Robotic end-effector air routing
Mounting guidance:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Tighten to 12-15 N·m torque using backup wrench on hex base.
Avoid overtightening - maximum rotation angle after hand-tight: 2.5 turns.
| Property | Property Value |
|---|---|
| sku | X-APY16 |
