Airtac X-APY Connector - Y-Type Tee X-APY8
AirTAC X-APY8 Y-Type Tee Connector Technical Details
- Model: X-APY8

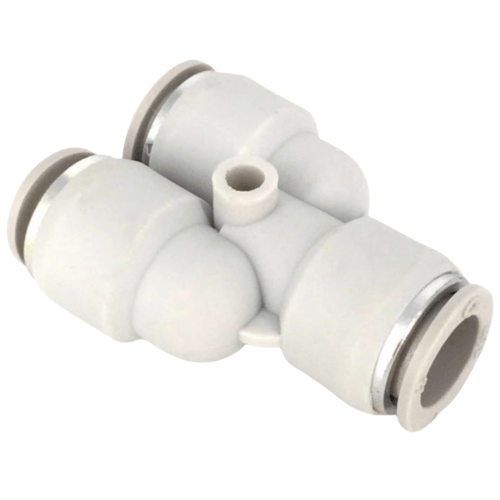

- Type: Y-shaped pneumatic tee connector (equal distribution)
- Thread standard: Metric (M5×0.8)
- Material: Nickel-plated brass (standard), stainless steel optional
- Max working pressure: 1.0 MPa (10 bar)
- Min burst pressure: 3.0 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (standard), FKM/Viton optional
- Flow rate (Cv value): 0.12
- Weight: 28g ±1g
- Dimensions: 32mm(L) × 24mm(W) × 24mm(H)
- Surface treatment: Electroless nickel plating (5-8μm)
- Leakage rate: ≤0.1 NL/min under 0.5 MPa
Precision-engineered Y-shaped flow divider with optimized internal geometry for minimal pressure drop. Features dual O-ring sealing (front and side) with anti-vibration thread design. Compatible with ISO 15407-1 standard pneumatic systems. Ideal for creating compact branching circuits in confined spaces.
- Modular pneumatic control cabinets
- Robotic end-effector air distribution
- Medical device pneumatic manifolds
- Semiconductor manufacturing equipment
- Multi-axis actuator synchronization systems
Installation protocol:
Apply 0.5-0.8 N·m torque during assembly. Use thread sealant only on male threads.
For vertical installations, position flow arrow upward. Requires annual seal inspection
in high-cycle applications (>500k actuations).
| Property | Property Value |
|---|---|
| sku | X-APY8 |
