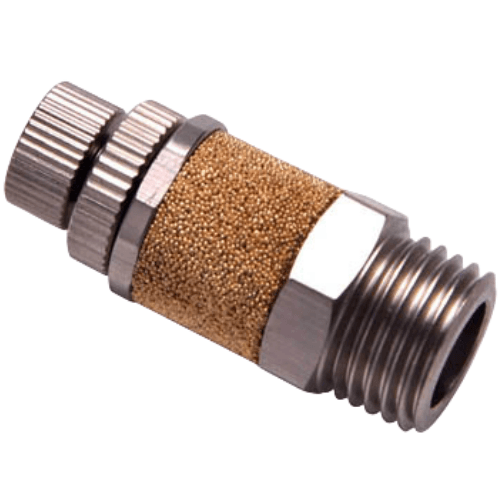

Airtac X-BESL Connector-Silencer Exhaust Throttle Valve X-BESL02
AirTAC X-BESL02 Muffler-Exhaust Throttle Valve Technical Details
- Model Series: X-BESL02 (Threaded Connection Type)
- Thread Standard: 1/4" BSPP (G1/4) / NPT1/4 optional
- Flow Adjustment Range: 0.2-12 L/min (air consumption at 0.5MPa)
- Maximum Throughput: 250 NL/min
- Operating Pressure: 0.05-0.9 MPa
- Temperature Range: -5℃ to 60℃ (non-freezing)
- Body Material: Aluminum alloy (anodized finish)
- Seal Material: High-grade NBR rubber
- Sound Pressure Level: ≤65 dB(A) @ 0.5MPa
- Vibration Resistance: 10-55Hz @ 1.5mm amplitude
- Weight: 48g ±2g
- Dimensions: 32mm(L) × 24mm(W) × 38mm(H)
- Compliance: RoHS 2.0 compliant
Dual-function valve combining muffling and flow control, featuring 360° rotatable collar for precise flow adjustment. The sintered bronze muffler element reduces exhaust noise while maintaining consistent backpressure. Includes dust-resistant mesh filter and O-ring sealed adjustment knob.
- Pneumatic cylinder speed regulation in assembly lines
- Noise reduction in cleanroom-compatible machinery
- Vacuum generator exhaust flow control
- Medical device pneumatic systems (ISO 13485 compatible)
- Food processing equipment with frequent speed adjustments
Installation Guidelines:
Install directly on valve exhaust ports with 2Nm torque maximum.
For optimal performance: 1) Align flow arrow with exhaust direction
2) Clean weekly with compressed air (≤0.3MPa)
3) Lubricate threads with PTFE tape during installation
| Property | Property Value |
|---|---|
| sku | X-BESL02 |
