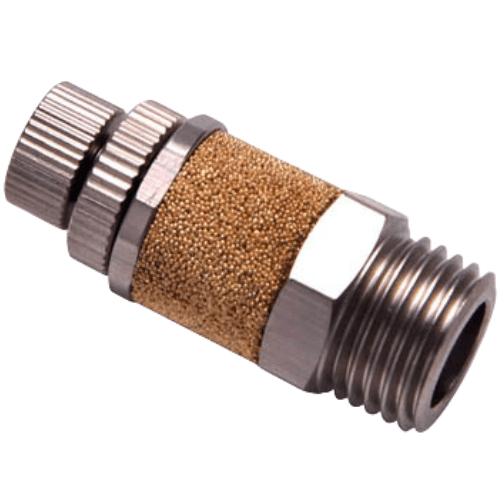

Airtac X-BESL Connector-Silencer Exhaust Throttle Valve X-BESL04
AirTAC X-BESL04 Muffler Exhaust Throttle Valve Specifications
- Model: X-BESL04
- Type: Threaded exhaust throttle valve with integrated silencer
- Port thread: M5×0.8 (external thread)
- Flow adjustment range: 0.1-10 L/min (N2 gas at 0.5MPa)
- Operating pressure: 0.05-1.0 MPa
- Body material: Nickel-plated brass
- Silencer element: Sintered bronze (replaceable)
- Temperature range: -5℃ to 90℃
- Installation orientation: Vertical (arrow mark upward)
- Noise reduction: 25-35 dB(A) attenuation
- Weight: ~18g
- Dimensions: 20mm(Ø) × 25mm(H)
- Torque limit: 0.3-0.5 N·m during adjustment
Precision throttle valve with integrated noise suppression, featuring 360° adjustable flow control collar for fine-tuning exhaust speed. The sintered bronze muffler provides effective noise reduction while maintaining airflow efficiency. Nickel plating ensures corrosion resistance in humid environments.
- Speed control for pneumatic cylinder exhaust ports
- Noise reduction in cleanroom automation equipment
- Precision air brake systems in material handling
- Medical device pneumatic circuits
- Robotic arm end-effector pressure regulation
Installation note:
Rotate adjustment collar clockwise to decrease exhaust flow.
Apply thread sealant (PTFE tape) on male threads.
Replace sintered filter when airflow resistance increases by 30%
or after 5,000 operating hours.
- Loosen lock nut with 8mm wrench
- Turn control collar - CW for slower exhaust, CCW for faster
- Test cycle rate with incremental 15° adjustments
- Retighten lock nut while holding collar position
| Property | Property Value |
|---|---|
| sku | X-BESL04 |
