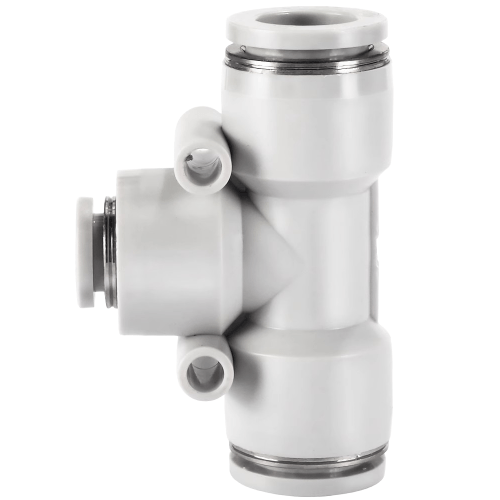

Airtac X-EPEG Adapter - T-Type Reducing Tee X-EPEG1210
$3.89
Regular price
$11.39
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPEG1210
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPEG1210 Reducing Tee Fitting Technical Details
- Model: X-EPEG1210 (T-Type Reducing Tee)
- Series: X-EPEG Threaded Fittings
- Material: Lead-free brass (CW617N) with nickel-plated surface
- Thread Standards: Metric (M) / BSPP / NPT optional
- Port Configuration:
- Main ports: 1/8" BSPP (G1/8)
- Reduced branch port: 10-32 UNF (Reduced from 1/8")
- Pressure Rating: 1.5 MPa (217 psi) maximum operating pressure
- Temperature Range: -5℃ to 80℃ (23℉ to 176℉)
- Seal Type: Integrated O-ring (NBR material) for metal-to-metal seal
- Torque Specification: 12-15 N·m installation torque
- Weight: 28g ±1g (0.062 lbs)
- Dimensions:
- Center-to-center (L): 21mm between main ports
- Branch height (H): 17mm from main axis
- Hex Size: 12mm wrench flat
- Surface Roughness: Ra ≤1.6μm
- Compliance: RoHS 2.0 compliant
Precision-engineered reducing tee for compact pneumatic systems requiring branch line downsizing. Features anti-vibration thread design with 30% thicker wall structure compared to standard tees. The chamfered entry ports (0.3mm radius) prevent tubing abrasion during installation.
Ideal Applications:
- Modular pneumatic manifolds requiring space optimization
- Robotic arm tool changers with mixed line pressures
- Medical gas delivery systems needing hygienic connections
- CNC machine coolant distribution networks
- Semiconductor fab equipment air lines
Installation Best Practice:
Apply thread sealant only on male threads (not on O-ring surfaces).
Align branch port within 15° of vertical position for optimal flow.
Pressure test at 1.8MPa after installation.
| Property | Property Value |
|---|---|
| sku | X-EPEG1210 |
