Airtac X-EPEG Adapter - T-Type Reducing Tee X-EPEG604

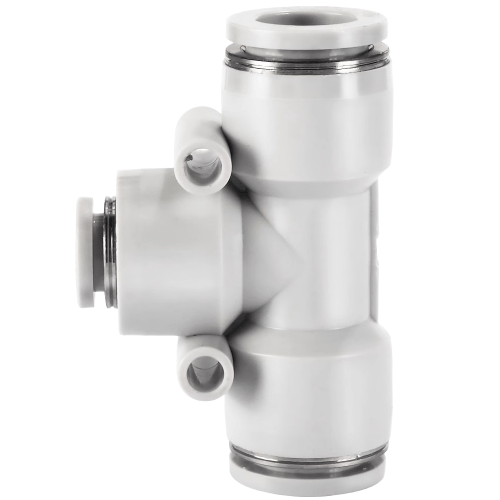

AirTAC X-EPEG604 T-Type Reducing Tee Fitting Technical Details
- Model: X-EPEG604
- Type: Brass T-style reducer tee with POM insert
- Thread Specifications:
- Main ports: G1/8 (female)
- Branch port: G1/4 (female)
- Tolerance: ISO 228-1 Class B
- Pressure Rating: 0.3-1.5 MPa (43.5-217.5 PSI)
- Temperature Range:
- Operating: -5℃ to 80℃
- Storage: -20℃ to 100℃
- Weight: 48g ±2g
- Dimensions:
- Length (end-to-end): 34mm
- Width (branch axis): 24mm
- Height (vertical axis): 34mm
- Surface Treatment: Nickel-plated brass body
- Seal Type: Integral O-ring (NBR material)
- Flow Coefficient (Cv): 0.15
Precision-machined flow control component designed for pneumatic system plumbing. Features corrosion-resistant construction with double-sealing surfaces at branch connections. The 25° cone seat design ensures leak-free operation under vibration. Compatible with ISO 8434-1/DIN 2353 metric tubing standards.
- Branch line creation in compact pneumatic manifolds
- Tooling machine air circuit modifications
- Robotic actuator supply line splits
- Compressed air distribution in packaging equipment
- Vacuum system plumbing for automation cells
Installation Guidelines:Apply 1.2-1.5 N·m torque during assembly. Use thread sealant only on male ports (Loctite 545 recommended). Avoid overtightening - maximum 1/8 turn past finger-tight. For vertical installations, orient branch port downward to prevent condensate pooling.
| Property | Property Value |
|---|---|
| sku | X-EPEG604 |
