Airtac X-EPHW Adapter - F-Type Thread Swivel Tee X-EPHW1002

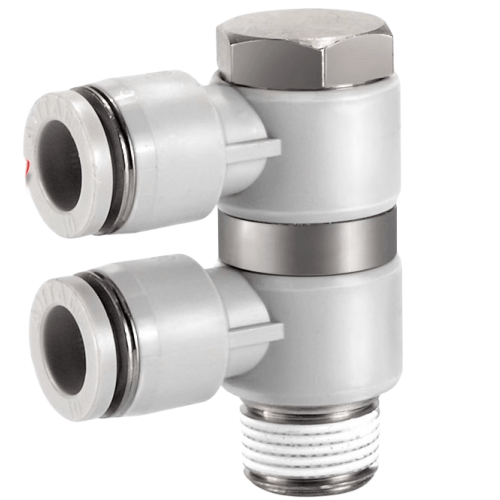

AirTAC X-EPHW F-Type Threaded Swivel Tee Connector X-EPHW1002 Specifications
- Model: X-EPHW1002
- Type: F-Type 3-way swivel threaded connector (male thread)
- Thread Standard: Metric fine thread (M5×0.8)
- Material: Nickel-plated brass (body), CRN rubber seals
- Operating Pressure: 0.05-1.0 MPa
- Temperature Range: -20℃ to 150℃ (instantaneous peak 180℃)
- Swivel Angle: 360° continuous rotation
- Seal Type: Double O-ring dynamic sealing
- Surface Treatment: Electroless nickel plating (8-12μm thickness)
- Weight: 18.5±0.3g
- Dimensions: 24mm(L) × 16mm(W) × 16mm(H)
- Port Sizes: M5×0.8 (all ports)
- Leakage Rate: ≤3×10⁻⁴ Pa·m³/s (helium test)
- Vibration Resistance: 10-2000Hz, 15G acceleration
- Protection Rating: IP67 (mated state)
High-density flow swivel tee featuring precision ground threads and anti-vibration locking design. The 45° angled port configuration optimizes space utilization in compact pneumatic systems. Nickel plating provides corrosion resistance exceeding 96hrs in salt spray tests. Rotational torque <0.3N·m ensures smooth adjustment without fluid leakage.
- Multi-axis robotic end effectors requiring flexible piping
- Modular pneumatic test benches with frequent reconfiguration
- Semiconductor wafer handling equipment
- High-cycle automation systems (≥5 million cycles rating)
- Vacuum line distribution in medical devices
Installation notes:
Apply PTFE tape clockwise on male threads. Tighten to 0.7-1.2N·m torque using 7mm crowfoot wrench.
Avoid overtightening which may deform O-ring grooves. Perform pressure test at 1.5×system pressure after installation.
- Seal replacement: Every 500,000 cycles or 2 years
- Lubrication: Silicone-free grease (ISO VG10) every 6 months
- Inspection: Check swivel stiffness monthly (should rotate with <0.5N force)
