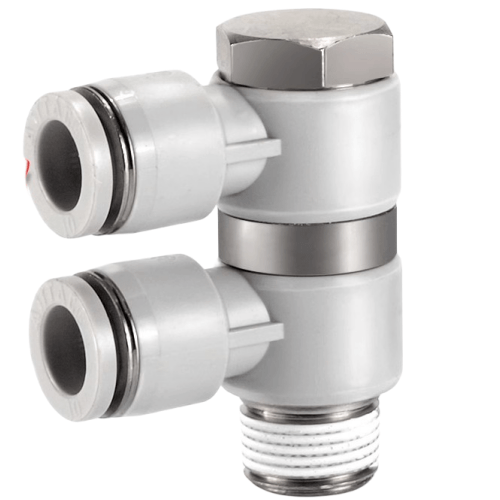

Airtac X-EPHW Adapter - F-Type Thread Swivel Tee X-EPHW1003
AirTAC X-EPHW F-Type Thread Rotatable Tee X-EPHW1003 Technical Details
- Model: X-EPHW1003
- Type: F-type thread rotatable tee (360° adjustable)
- Thread standard: Metric fine thread (M5×0.8)
- Material: Brass body with chrome plating
- Operating pressure: 0.05–1.0 MPa
- Proof pressure: 1.5 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile) O-rings
- Surface hardness: ≥HV300
- Weight: 35±2g
- Dimensions: 25mm(L) × 20mm(W) × 20mm(H)
- Port configuration: 1/8" BSPP female threads (3 ports)
- Rotation torque: ≤0.3 N·m
- Protection rating: IP40
Three-way rotary joint featuring tool-free 360° adjustable orientation for flexible piping layouts. Corrosion-resistant chromium-plated surface with precision-machined threads ensures leak-free connections. Includes integrated stopper mechanism to prevent accidental disassembly during rotation.
- Modular pneumatic circuit distribution
- Robotic arm end effector air supply
- CNC machine tool coolant line branching
- Compressed air instrumentation manifolds
- Vacuum system flow division
Installation note:
Hand-tighten until O-ring compression creates initial seal (max 1.5Nm torque).
Rotate fitting body after full thread engagement. Apply pipe sealant only
on male threads, avoiding contact with rotating surfaces.
