Airtac X-EPHW Adapter - F-Type Thread Swivel Tee X-EPHW1203

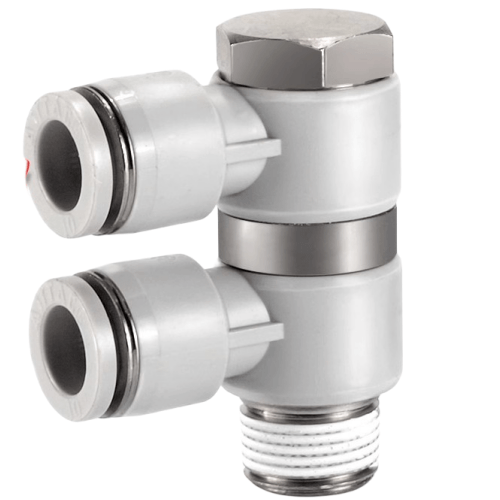

AirTAC X-EPHW F-Type Threaded Rotatable Tee X-EPHW1203 Specifications
- Model: X-EPHW1203
- Type: 3-way rotary joint (F-type parallel thread)
- Thread standard: BSPP (G thread) compatible
- Port size: 1/8" (Rc1/8 equivalent)
- Material: Lead-free brass CW617N (surface nickel-plated)
- Seal material: HNBR rubber (hydrogenated nitrile)
- Operating pressure: 0.05–1.0 MPa
- Proof pressure: 1.5 MPa
- Temperature range: -20℃ to 150℃ (static air)
- Rotation angle: 340° adjustable
- Weight: 48g ±2g
- Dimensions: 28mm(L) × 36mm(W) × 36mm(H)
- Surface roughness: Ra ≤3.2μm
- Torque resistance: ≤2.5N·m
- Leakage rate: ≤3×10⁻³ Pa·m³/s (helium test)
Precision-machined rotatable tee featuring triple-seal technology (radial + axial + thread sealing). The chrome-plated brass construction ensures corrosion resistance in humid environments. 340° rotation allows flexible piping alignment without component stress. Compatible with pneumatic fluids: air, inert gases (N₂/CO₂), and vacuum systems.
- Modular pneumatic circuit distribution
- Robotic arm end-effector air supply
- CNC machine tool cooling air networks
- Semiconductor cleanroom equipment
- Hydraulic test bench manifold systems
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (grade DIN 73379).
Tighten to 1.2-1.6N·m torque using 17mm crowfoot wrench.
Avoid overtightening which may compress HNBR seals beyond 0.3mm deformation limit.
| Property | Property Value |
|---|---|
| sku | X-EPHW1203 |
