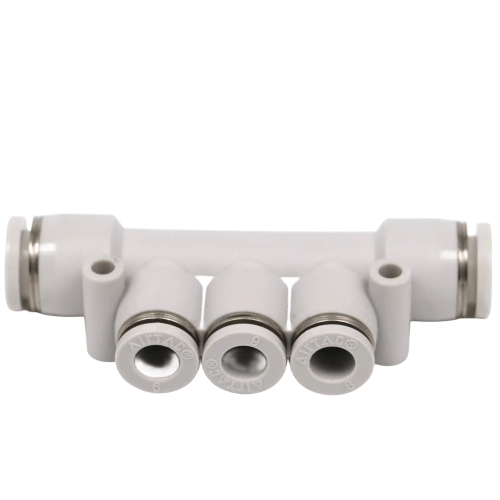

Airtac X-EPKG Reducing Five-Way Fitting X-EPKG108
AirTAC X-EPKG108 Reducer Five-way Fitting Specifications
- Model: X-EPKG108
- Type: Reducer-type five-way connector (non-threaded)
- Material: Brass with nickel plating (anti-corrosion coating)
- Port configuration: 5 ports (1 inlet, 4 outlets)
- Port sizes: PT1/8 (inlet) → PT1/8×4 + PT3/8×1 (stepped reduction)
- Max working pressure: 1.5 MPa
- Proof pressure: 2.25 MPa
- Burst pressure: 3 MPa
- Operating temperature: -20℃ to 80℃
- Weight: 85g ±2g
- Dimensions: 32mm(L) × 32mm(W) × 32mm(H) (nominal body size)
- Seal material: NBR (Nitrile) rubber
- Flow coefficient (Cv): 0.85
- Compliance: ISO 15407-1 standard
Precision-engineered flow distribution component with stepped diameter reduction, featuring corrosion-resistant construction and leak-proof O-ring seals. Designed for compact pneumatic systems requiring multiple branch connections with varying tube diameters. Optimized for vibration resistance with hex-shaped body for tool grip during installation.
- Multi-axis pneumatic tool changers
- Compact automation cells with space constraints
- Medical device pneumatic distribution hubs
- Packaging machine air circuit branching
- Laboratory equipment multi-port manifolds
Installation note:
Apply thread sealant only on male threads (tapered ends).
Avoid overtightening - recommended torque ≤1.2N·m.
For vertical installations, position outlet ports downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | X-EPKG108 |
