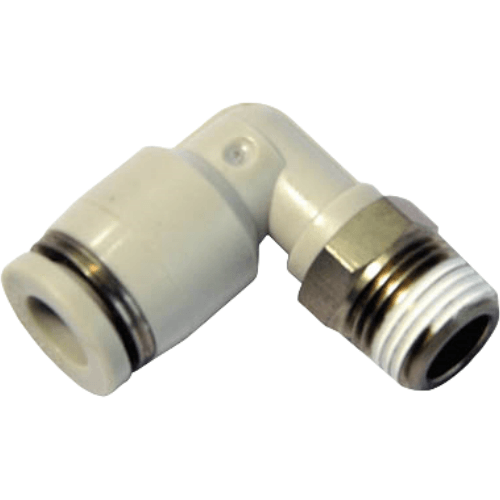

Airtac X-EPL Elbow Adapter with L-Thread (Straight) X-EPL1004
$4.72
Regular price
$12.22
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPL1004
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPL1004 L-Type Threaded Elbow Tee Specifications
- Model: X-EPL1004
- Type: L-shaped elbow tee with dual female threads
- Thread standard: Metric fine thread (M5×0.8)
- Material: Lead-free brass (CuZn21Si3P)
- Surface treatment: Electroless nickel plating (5-8μm)
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -20℃ to 120℃
- Seal type: Embedded O-ring (NBR material)
- Weight: 12.5±0.3g
- Dimensions: 21mm(L) × 16mm(W) × 14mm(H)
- Flow coefficient (Cv): 0.15
- Vibration resistance: ≤20m/s² (10-150Hz)
90° flow-division fitting with precision-machined internal channels, designed for space-constrained pneumatic systems. Features anti-vibration thread locking structure and chemical-resistant sealing. Meets ISO 1179-1 standard for metric connectors.
Typical Applications:
- Robotic arm pneumatic circuit branching
- CNC machine tool air line distribution
- Medical device gas flow splitting
- Semiconductor cleanroom equipment
- Packaging machine actuator connections
Installation note:
Apply 0.3-0.5Nm torque during assembly. Use thread sealant only on male threads.
Avoid overtightening - maximum 1.2x nominal torque. Compatible with 4mm OD tubing.
| Property | Property Value |
|---|---|
| sku | X-EPL1004 |
