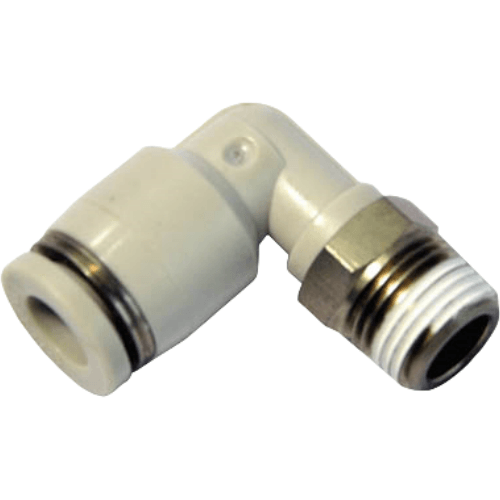

Airtac X-EPL Elbow Adapter with L-Thread (Straight) X-EPL12M12
AirTAC X-EPL12M12 L-Type Threaded Tee Connector Specifications
- Model: X-EPL12M12
- Type: L-shaped metric thread tee connector (male-to-female)
- Thread standard: M12×1.5 (G1/8 equivalent flow capacity)
- Material: Brass with nickel-plated surface (stainless steel optional)
- Pressure rating: 0.3-1.5 MPa (43.5-217.5 PSI)
- Temperature range: -20℃ to 80℃ (continuous operation)
- Seal type: Embedded O-ring (NBR standard, FKM available)
- Installation torque: 25-35 Nm (18.4-25.8 ft-lb)
- Surface hardness: ≥HV200
- Weight: 48g ±2g
- Dimensions: 32mm(H) × 24mm(W) × 28mm(L)
- Port orientation: 90° right-angle configuration
- Fluid compatibility: Air, inert gases, water (non-corrosive media)
- Certifications: RoHS compliant, ISO 1179-1 standard
- Color: Metallic silver (standard), black oxide optional
Precision-machined L-shaped pneumatic connector featuring triple-seal technology with anti-vibration grooves. The hexagonal base allows wrench tightening while maintaining port alignment. Electroless nickel plating provides corrosion resistance in humid environments. Designed for 50,000+ connection cycles with <0.01% leakage rate at rated pressure.
- Pneumatic cylinder port extension in tight spaces
- Sensor mounting brackets in automation lines
- Modular pneumatic manifold systems
- Robotic arm pneumatic circuit routing
- CNC machine tool coolant line adapters
Installation protocol:
Apply thread sealant only on male threads (not required for O-ring face seal models).
Use crowfoot wrench for torque control in confined areas. Perform pressure test at 1.25×
working pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-EPL12M12 |
