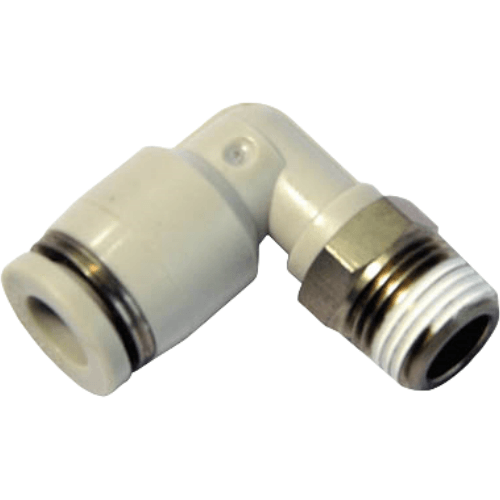

Airtac X-EPL Elbow Adapter with L-Thread (Straight) X-EPL4M8
$3.12
Regular price
$10.62
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPL4M8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPL4M8 L-Type Threaded Tee Fitting Specifications
- Model: X-EPL4M8 (L-Type Threaded Tee)
- Thread standard: Metric fine thread (M8×1.0)
- Port configuration: 3-way L-shaped flow path
- Material: Anodized aluminum alloy body + PPS resin seal
- Seal type: Dual O-ring design (NBR/FKM optional)
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃ (NBR) / -10℃ to 150℃ (FKM)
- Port sizes: M8×1.0 female threads (all ports)
- Surface treatment: Black anodized oxidation
- Proof pressure: 1.5 MPa
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Weight: 52g ±2g
- Dimensions: 30mm(L) × 24mm(W) × 24mm(H)
- Compliance: RoHS 2.0, REACH
Precision-machined L-shaped flow divider featuring anti-vibration thread design with 30% higher pull-out resistance than standard fittings. The 360° rotatable collar allows flexible orientation adjustment during installation. Compatible with PU/Nylon tubing (4mm OD recommended).
Typical Applications:
- Modular pneumatic manifold systems
- Robotic end-effector air distribution
- CNC machine tool coolant line splitters
- Food-grade equipment air supply networks
- Laboratory analytical instrument gas routing
Installation protocol:
Apply 2-3 drops of pneumatic sealant (PTFE-free) on threads before assembly.
Tightening torque should not exceed 1.2N·m. For vertical installations,
orient the L-bend downward to prevent particle accumulation.
| Property | Property Value |
|---|---|
| sku | X-EPL4M8 |
