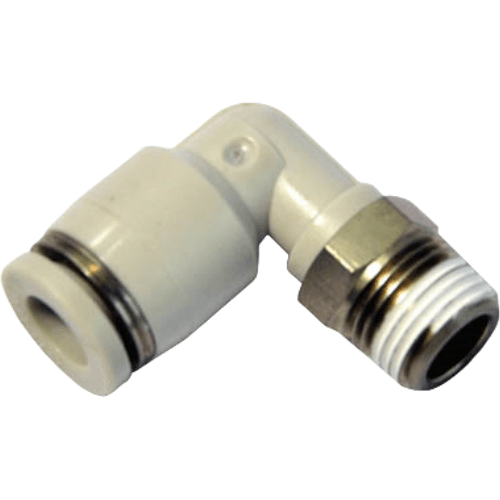

Airtac X-EPL Elbow Adapter with L-Thread (Straight) X-EPL6M8
$3.12
Regular price
$10.62
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPL6M8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPL6M8 L-Type Threaded Elbow Fitting Specifications
- Model: X-EPL6M8 (L-Type Elbow)
- Thread type: Metric fine thread (M8×1.0)
- Material: Nickel-plated brass (C3604)
- Seal material: NBR O-ring
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -5℃ to 80℃
- Tube OD compatibility: Ø6mm (1/8")
- Flow coefficient (Cv): 0.4
- Surface treatment: Electroless nickel plating (5-8μm)
- Weight: 15g ±0.5g
- Dimensions: 40mm (L) × 14mm (W) × 25mm (H)
- Thread engagement length: 8mm
- Vibration resistance: ≤10Hz @ 1.5mm amplitude
Precision-engineered 90° elbow connector featuring a leak-proof design with dual sealing surfaces. The L-shaped configuration enables space-saving plumbing in complex pneumatic circuits. Nickel plating provides corrosion resistance against moisture and mild chemicals.
Typical Applications:
- Pneumatic cylinder port connections
- Compact valve manifolds in automation cells
- Medical device gas line routing
- Robotic end-effector air supply systems
- Packaging machine sensor air purge lines
Installation note:
Apply 2-3 wraps of PTFE tape on male threads. Tighten to 1.2-1.5N·m torque.
Avoid overtightening which may deform O-ring groove. Compatible with ISO 1179-2 standard ports.
| Property | Property Value |
|---|---|
| sku | X-EPL6M8 |
