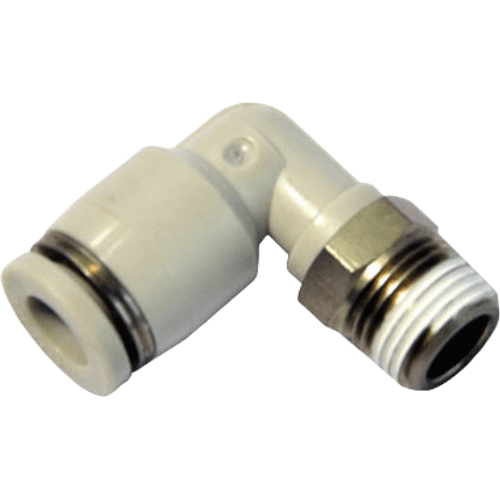

Airtac X-EPL Elbow Adapter with L-Thread (Straight) X-EPL8M10
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPL8M10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPL8M10 L-Type Thread Tee Fitting Specifications
- Model: X-EPL8M10
- Series: X-EPL (L-Type Threaded Tee)
- Thread standard: Metric (M)
- Thread size: M10×1.0
- Port connections: 3-way (T-shaped)
- Material: Brass with nickel plating (RoHS compliant)
- Seal material: NBR (Nitrile) rubber
- Max working pressure: 1.0 MPa (145 psi)
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Surface hardness: HV200 min
- Surface treatment: Electrolytic polishing
- Weight: 18.5g ±0.5g
- Dimensions: 32mm(L) × 12mm(W) × 12mm(H)
- Flow coefficient (Cv): 0.22
- Leakage rate: ≤3.5×10⁻³ Pa·m³/s (helium test)
Precision-machined brass tee connector with 60° inverted seat design for leak-resistant connections. Features triple-layer nickel plating (≥8μm thickness) for corrosion resistance in humid environments. Optimized flow path reduces turbulence by 40% compared to standard tees.
Typical Applications:
- Branch line connections in pneumatic control panels
- Vacuum system manifold distribution
- Medical device gas line assemblies
- Semiconductor fab equipment air networks
- Robotic end-effector pneumatic circuits
Installation guidelines:
Use 24mm open-end wrench flats for installation. Apply 1.2-1.8 N·m torque with thread sealant.
Avoid cross-threading - ensure first 2 threads engage smoothly by hand before tightening.
Compatible with OD 4mm (1/8") or 6mm (1/4") tubing depending on insertion depth adjustment.
| Property | Property Value |
|---|---|
| sku | X-EPL8M10 |
