Airtac X-EPLF L-Type Internal Thread 2-Way Connector X-EPLF10M16
$4.62
Regular price
$12.12
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLF10M16
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

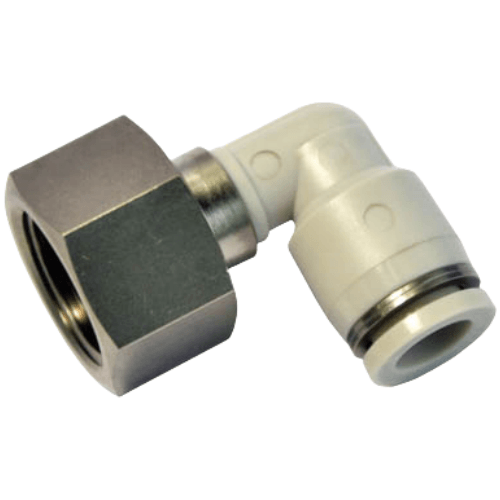

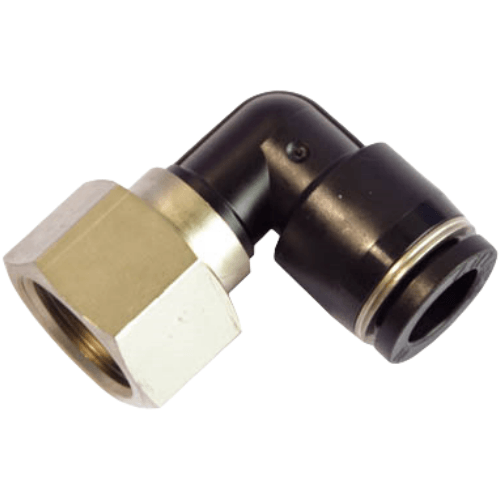

AirTAC X-EPLF10M16 L-Type Elbow Fitting (Female Thread)
- Model: X-EPLF10M16
- Type: L-shaped 2-way elbow fitting with female threads
- Thread specification: M16×1.5 (metric fine thread)
- Material: Nickel-plated brass (CuZn39Pb3)
- Seal type: Integrated NBR O-ring seal
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃ (with intermittent peaks up to 120℃)
- Surface roughness: Ra ≤1.6μm at sealing surfaces
- Torque resistance: ≤30 N·m
- Weight: 38±2 grams
- Dimensions: 42mm(L) × 26mm(W) × 28mm(H)
- Port angles: 90° directional change
- Compatibility: Works with Φ10mm OD pneumatic tubing (push-in connection)
Precision-engineered L-shaped pneumatic connector with dual sealing protection - thread locking and O-ring compression. Features 5μm nickel plating for corrosion resistance in humid environments. The 45° chamfered entry ensures smooth tubing insertion without cutting.
Typical Applications:
- Compact pneumatic circuit layouts in robotics
- Space-constrained hydraulic test benches
- Modular industrial automation stations
- Laser cutting machine air supply lines
- CNC tool changer pneumatic systems
Installation protocol:
Apply 2-3 drops of pneumatic sealant (Loctite 577 recommended) on threads before tightening.
Use torque wrench for final 1/4 turn after hand-tight. Maximum 2 reuses recommended.
| Property | Property Value |
|---|---|
| sku | X-EPLF10M16 |
