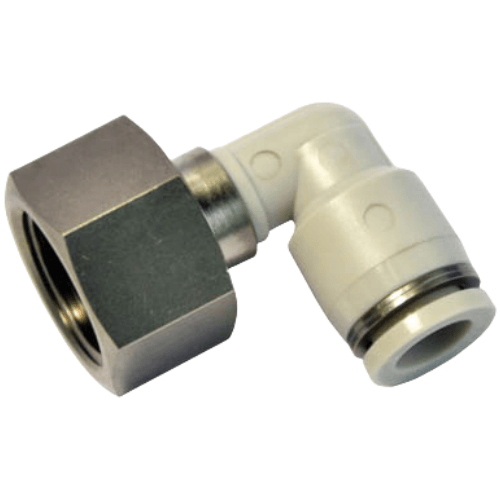

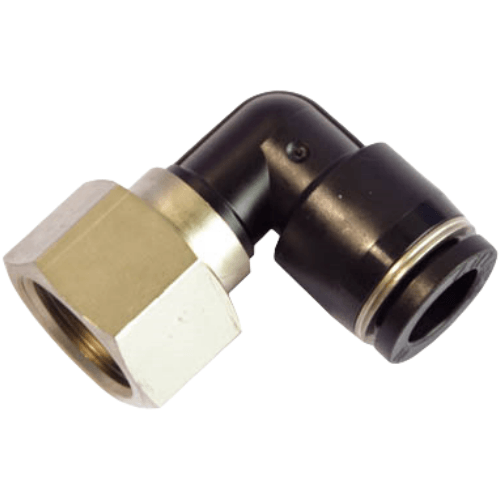

AirTAC X-EPLF16M20 L-Type Elbow Fitting Specifications
- Model: X-EPLF16M20
- Type: L-shaped elbow union tee with internal threads
- Thread standard: Metric (M)
- Port size: M20×1.5 (male thread on both ends)
- Material: Brass (CuZn39Pb3) with nickel-plated surface
- Pressure rating: 1.5 MPa max (15 bar)
- Temperature range: -20℃ to 120℃
- Seal type: Integrated O-ring (NBR material)
- Torque resistance: ≤50 N·m
- Weight: 148±3g
- Dimensions: 72mm(L) × 36mm(W) × 45mm(H)
- Surface roughness: Ra ≤1.6μm
- Vibration resistance: 10-2000Hz (IEC 60068-2-6)
90° directional flow connector designed for high-density pneumatic plumbing. Features laser-etched size markings and anti-vibration grooves. The chamfered entry ports prevent O-ring damage during assembly. Compatible with ISO 1179-2 standards.
Typical Applications:
- Pneumatic cylinder manifold connections
- CNC machine tool air line routing
- Robotic arm pneumatic circuit bends
- Compressed air distribution in tight spaces
- Vacuum system directional flow control
Installation note:
Apply thread sealant only on male threads (PTFE tape recommended).
Tighten with 24mm open-end wrench - do not exceed 2 full turns after hand-tight.
Align flow arrow with system direction.
