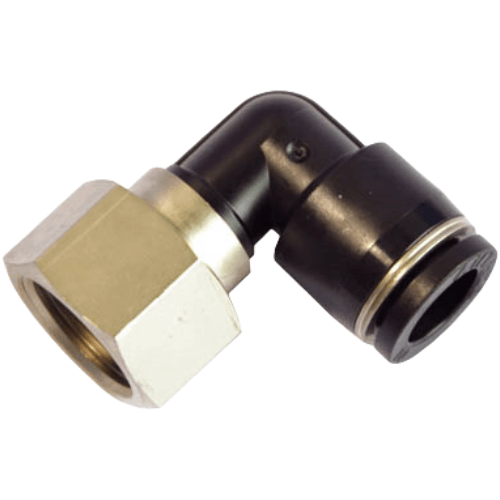

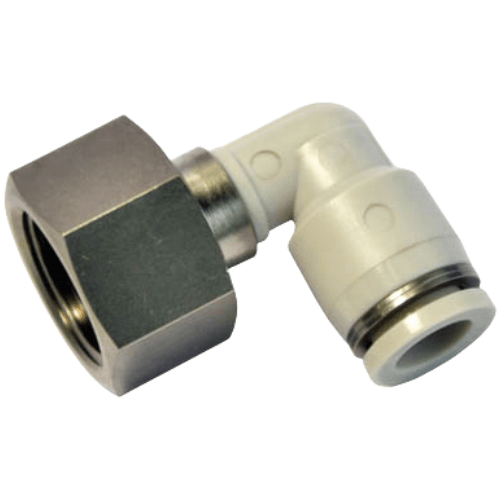

Airtac X-EPLF L-Type Internal Thread 2-Way Connector X-EPLF4M10
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLF4M10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLF4M10 L-Shaped Internal Thread Tee Fitting Specifications
- Model: X-EPLF4M10
- Type: L-shaped 90° elbow with internal threads (female-female)
- Thread Standard: Metric fine thread (M10×1.0)
- Material: Brass with nickel plating (stainless steel optional)
- Seal Type: Embedded O-ring (NBR standard, FKM optional)
- Pressure Rating: 0.05–1.5 MPa
- Temperature Range: -20℃ to 80℃
- Weight: 48g ±2g (brass version)
- Dimensions: 32mm(L) × 18mm(W) × 24mm(H)
- Flow Capacity: 120 NL/min @0.5MPa
- Surface Finish: ≤Ra1.6μm
- Corrosion Resistance: 96hrs salt spray test compliant
Precision-machined pneumatic connector featuring dual sealing surfaces and leak-proof design. The compact L-shape enables space-saving plumbing configurations in multi-axis systems. Anti-vibration grooves prevent unintended loosening under mechanical stress.
Typical Applications:
- Robotic arm pneumatic circuit branching
- CNC machine tool air supply distribution
- Semiconductor wafer handling equipment
- Food processing machinery (stainless steel variant)
- Medical device pneumatic control systems
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads (when used).
Hand-tighten first, then apply 1/4 turn with wrench.
Avoid overtightening beyond 5 N·m torque to prevent thread deformation.
Compatible Tubing:
Works with Φ4mm polyurethane/nylon tubing (not included).
For vacuum applications, use with AirTAC XTV series vacuum-rated tubes.
| Property | Property Value |
|---|---|
| sku | X-EPLF4M10 |
