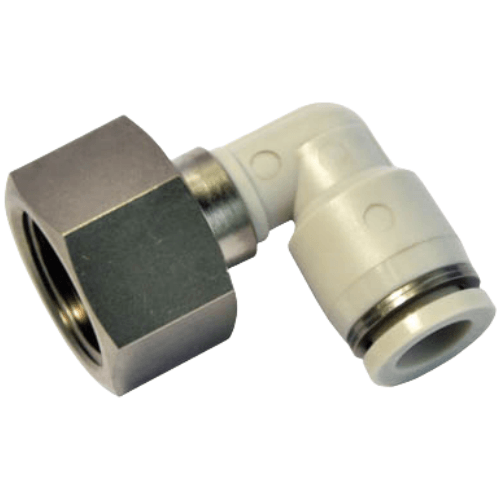

Airtac X-EPLF L-Type Internal Thread 2-Way Connector X-EPLF8M10
$3.43
Regular price
$10.93
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLF8M10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLF8M10 Elbow Fitting-L Type Specifications
- Model: X-EPLF8M10
- Type: L-shaped 2-way internal thread elbow
- Thread specification: M10×1.0 internal thread (ISO metric)
- Material: Lead-free brass (CuZn39Pb0.5) with nickel plating
- Seal material: NBR (Nitrile rubber)
- Pressure range: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃ (non-lubricated)
- Proof pressure: 1.5 MPa
- Installation torque: 10–12 N·m
- Surface hardness: ≥HV200 (nickel plating layer)
- Weight: 78g ±2g
- Dimensions: 45mm(L) × 30mm(W) × 30mm(H)
- Flow characteristics: CV value 0.12
- Compliance: RoHS 2011/65/EU
Precision-engineered 90° pneumatic connector featuring corrosion-resistant nickel plating and dual sealing surfaces. The L-shaped design enables space-saving piping layouts while maintaining optimal flow efficiency. Features 360° rotatable collar for tool-free installation alignment.
Typical Applications:
- Pneumatic cylinder port connections
- Compact valve manifolds in automation cells
- Robotic end-effector air supply routing
- Medical equipment gas line junctions
- CNC machine tool pneumatic circuits
Installation note:
Apply thread sealant (LOCTITE 545) on male threads only.
Avoid overtightening - use torque wrench for precise installation.
Maximum 3 full rotations after hand-tight contact.
| Property | Property Value |
|---|---|
| sku | X-EPLF8M10 |
