Airtac X-EPM Bulkhead Straight Connector X-EPM6
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPM6
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

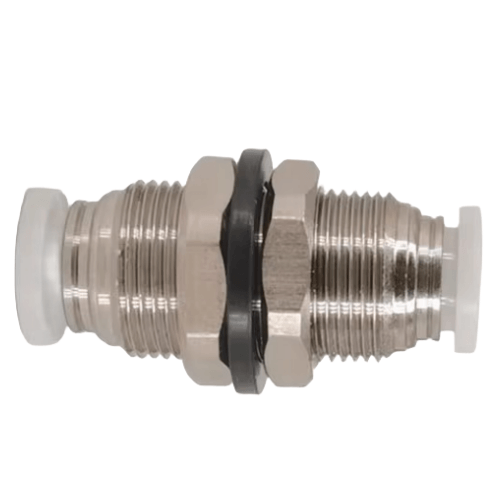

AirTAC X-EPM6 Bulkhead Straight Fitting Detailed Specifications
- Model: X-EPM6
- Type: Bulkhead union straight through connector
- Thread standard: Metric (M5×0.8)
- Material: Brass (CuZn39Pb3) with nickel plating
- Seal material: NBR (Nitrile) O-ring
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Weight: 12.5 grams
- Dimensions: 24mm(L) × 12mm(OD) × 12mm(ID)
- Surface roughness: Ra ≤3.2μm
- Installation torque: 0.7-1.2 N·m
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined bulkhead fitting designed for panel mounting in pneumatic systems. Features double O-ring sealing structure with 360° pressure containment. Anti-rotation hex design prevents tool slippage during installation. Compatible with ISO 15407-1 standard manifolds.
Typical Applications:
- Pneumatic control panel interface connections
- Modular manifold system integration
- Medical equipment gas line passthroughs
- Food processing machinery with washdown requirements
- Robotic end-effector pneumatic routing
Installation protocol:
Use torque wrench for precise tightening. Apply silicone-free lubricant to O-rings.
Maximum panel thickness: 8mm. Perform pressure test at 1.1× system pressure after installation.
Fluid Compatibility:
Compressed air (ISO 8573-1:2010 Class 2-4-2), inert gases.
Not recommended for steam, acids, or phosphate ester fluids.
| Property | Property Value |
|---|---|
| sku | X-EPM6 |
