Airtac X-EPMF Connector - Straight Female Panel Mount X-EPMF1203
AirTAC X-EPMF1203 Bulkhead Fitting - Straight Through Internal Thread Specifications
- Model: X-EPMF1203
- Type: Bulkhead union with straight through internal threads (male-female)
- Thread specification: M5×0.8 (internal) × 1/8" BSPP (external)
- Material: C3604 brass with nickel plating
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -5℃ to 80℃
- Weight: 24.5g ±0.5g
- Dimensions: 35mm(L) × 12mm(W) × 12mm(H)
- Through-hole diameter requirement: φ10.5mm min
- Surface roughness: Ra ≤3.2μm
- Torque specification: 2.5-3.0 N·m during installation
- Compliance: RoHS 2011/65/EU

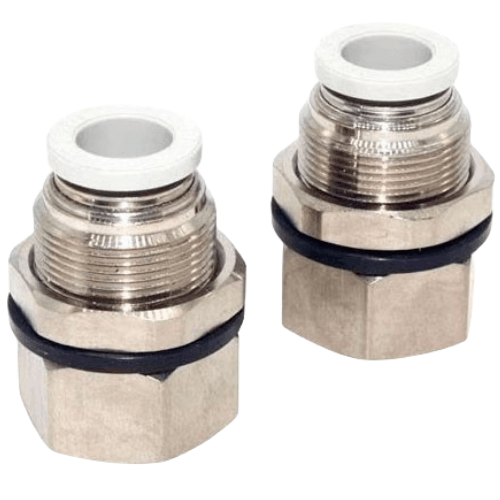

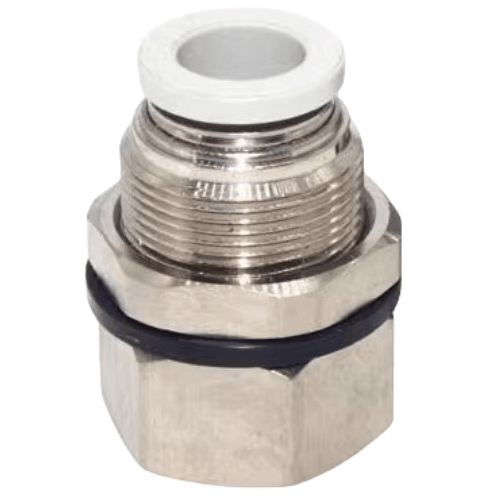

Precision-machined bulkhead fitting designed for panel-mounted pneumatic connections. Features dual sealing surfaces with embedded O-ring (NBR material) for leak-free transitions between internal and external circuits. The knurled collar allows tool-free hand tightening in confined spaces.
- Modular pneumatic manifolds in factory automation
- Compressed air distribution panels
- Medical gas line passthrough systems
- Robotic arm pneumatic interface modules
- CNC machine tool air circuit isolation
Installation protocol:
Apply thread sealant only on external BSPP threads.
Use backup wrench on hex base during final tightening to prevent rotation.
Max reusability: 5 installation cycles.
