Airtac X-EPMF Connector - Straight Female Panel Mount X-EPMF801
$3.89
Regular price
$11.39
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPMF801
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

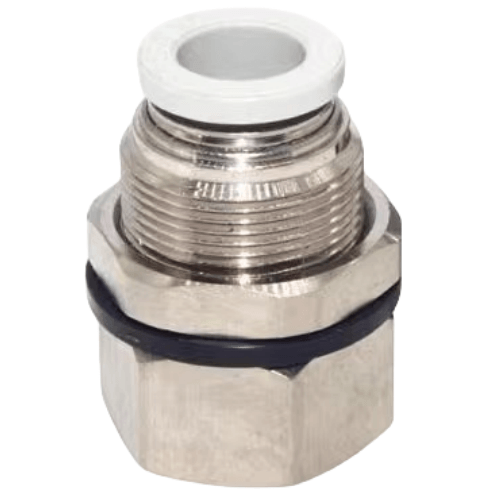

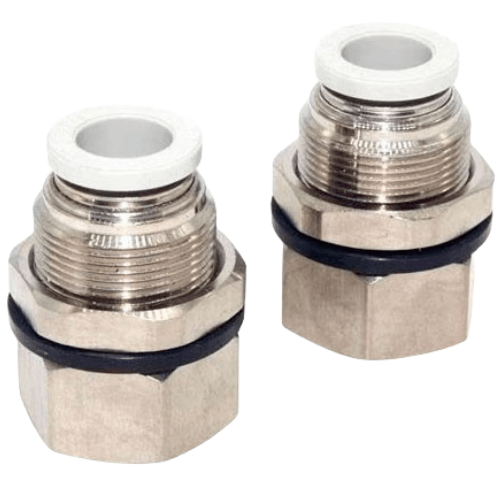

AirTAC X-EPMF801 Straight Threaded Bulkhead Fitting Specifications
- Model: X-EPMF801
- Type: Through-bulkhead straight thread fitting (female threads both ends)
- Thread standard: Metric (M5×0.8 internal thread)
- Material: Nickel-plated brass (CuZn39Pb3)
- Seal type: NBR O-ring (optional FKM available)
- Pressure rating: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃ (with NBR seal)
- Tube compatibility: 8mm OD polyurethane/nylon tubing
- Panel thickness range: 1–6mm
- Torque specification: 1.2–1.5 N·m (installation)
- Weight: 18.5g ±0.3g
- Dimensions: 23mm(L) × 16mm(W) × 12mm(H)
- Surface roughness: Ra ≤3.2μm (sealing surfaces)
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Precision-engineered bulkhead connector featuring dual-seal design with 360° anti-rotation flange. The electroplated finish provides corrosion resistance in humid environments. Integrated O-ring groove ensures leak-proof connections across thermal expansion cycles.
Typical Applications:
- Pneumatic control panel pass-through connections
- Modular machinery interface panels
- CNC equipment pneumatic distribution
- Cleanroom instrumentation panels
- Mobile hydraulic system bulkhead terminations
Installation protocol:
Use backup wrench on hex flats during tube insertion. Apply silicone-free lubricant
to O-ring before assembly. Maximum 3 reuses recommended for sealing elements.
Compatible components:
Works with AirTAC EPDM series push-to-connect fittings. Requires 25mm minimum
clearance behind panel for tool access. Not recommended for rotary joint applications.
