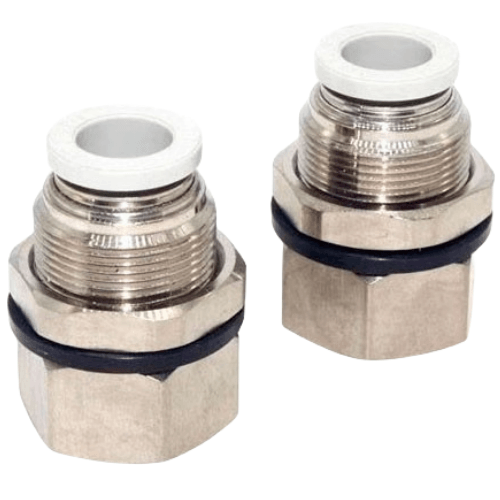

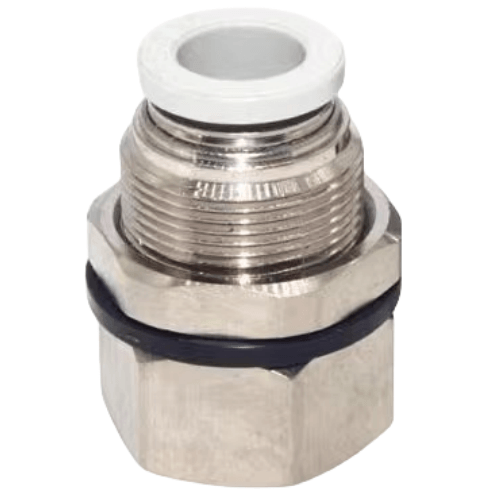

Airtac X-EPMF Connector - Straight Female Panel Mount X-EPMF802
AirTAC X-EPMF802 Straight Threaded Bulkhead Fitting Technical Details
- Model: X-EPMF802
- Type: Straight-through internal thread bulkhead fitting
- Thread standard: BSPP (G-thread)
- Port size: PT1/8 (G1/8)
- Material: Brass (nickel-plated surface)
- Seal material: NBR rubber O-ring
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Mounting panel thickness: 1-5mm
- Torque limit: 1.5-2.0 N·m
- Weight: 18g ±0.5g
- Dimensions: 28mm(L) × 16mm(Ø) × 28mm(H)
- Surface roughness: Ra ≤3.2μm
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-engineered bulkhead connection solution featuring dual-seal structure with primary metal-to-metal thread engagement and secondary NBR sealing. The through-wall design enables fluid path continuity across panels while maintaining pressure integrity. Nickel plating provides corrosion resistance in humid environments (85% RH max).
- Pneumatic control cabinet pass-through connections
- Modular machinery interface panels
- Hydraulic manifold block installations
- Clean room equipment with partitioned systems
- Mobile hydraulic/pneumatic platforms
Installation protocol:
Apply PTFE tape on male threads (2-3 wraps max). Use backup wrench on hex flats during tightening.
Verify O-ring compression (0.3-0.5mm deformation recommended). Perform pressure test at 1.5x working pressure.
