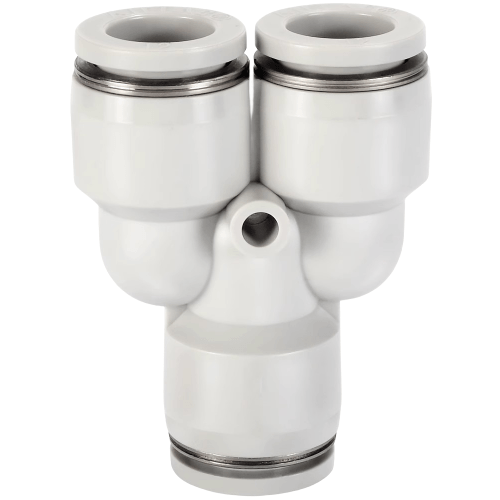

Airtac X-EPY Connector - Y Type Tee X-EPY10
$3.53
Regular price
$11.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPY10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPY10 Y-Type Tee Fitting Specifications
- Model: X-EPY10
- Type: Y-shaped three-way connector (equal division)
- Material: Nickel-plated brass (anti-corrosion treatment)
- Port thread: PT1/8 (BSPP) female threads
- Tube compatibility: Ø10mm (3/8") pneumatic tubing
- Pressure range: 0.5-1.5 MPa (72-217 psi)
- Temperature range: -5℃ to 80℃ (23℉ to 176℉)
- Seal material: High-grade NBR rubber
- Weight: 15g ±1g
- Dimensions: 25mm(L) × 12mm(Dia.) body / 34mm span between ports
- Surface finish: Electro-less nickel plating (5-8μm thickness)
- Leakage rate: ≤0.1 NL/min under max pressure
- Certification: RoHS compliant
Precision-engineered Y-connector with 120° branch angle for balanced flow distribution in pneumatic systems. Features self-aligning threads and embedded O-ring seals for tool-free assembly. The hexagonal body design allows wrench tightening (recommended torque: 1.2-1.5 N·m).
Typical Applications:
- Pneumatic circuit branching in automation cells
- Multi-axis robotic tool changers
- Compressed air distribution in packaging lines
- Medical device pneumatic manifolds
- CNC machine tool clamping systems
Installation guidelines:
Apply thread sealant (PTFE tape or liquid) on male threads only.
Avoid overtightening - hand-tighten plus 1/4 turn with tool.
Position vertical downward ports to prevent debris accumulation.
Flow Characteristics:
- Max flow rate: 300 NL/min (ANR)
- Pressure drop: ≤0.02 MPa at 0.5 MPa supply pressure
- Flow direction: Bidirectional (arrow markings indicate preferred main flow path)
| Property | Property Value |
|---|---|
| sku | X-EPY10 |
