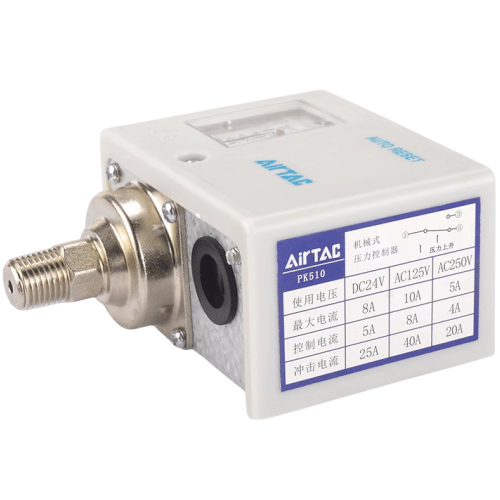

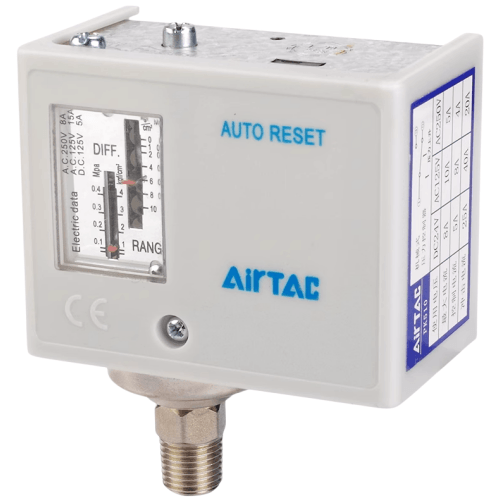

Airtac X-PK Pressure Controller X-PK506
2. Compliant with international standard mounting brackets for versatile installation in any orientation;
3. SPDT switch ensures reliable contact switching performance;
4. Protection class: IP40
Category: Pressure Controllers | Brand: AIRTAC | Series: X-PK （Note: The text maintains technical terminology while optimizing readability. Key specifications like SPDT (Single Pole Double Throw) switch and IP40 protection class are preserved with industry-standard phrasing. HTML line breaks are retained as requested.）
AirTAC X-PK506 Precision Pressure Controller Technical Details
- Model: X-PK506
- Type: Digital pressure regulator with LCD display
- Pressure range: 0.02–0.98 MPa (2.9–142 psi)
- Port size: G1/4 (BSPP thread)
- Control accuracy: ±1.5% F.S.
- Operating temperature: 0–50℃ (non-freezing)
- Supply voltage: DC24V ±10%
- Current consumption: ≤80mA
- Output signal: 1–5V DC / 4–20mA (selectable)
- Response time: ≤1.5 seconds
- Hysteresis: ≤0.5% F.S.
- Weight: 450g ±5%
- Dimensions: 85mm(W) × 65mm(D) × 105mm(H)
- Housing material: Anodized aluminum alloy
- Diaphragm material: Fluororubber (FKM)
- Protection rating: IP54 (dust/water resistant)
- CE/RoHS compliant
Advanced proportional pressure regulator featuring closed-loop feedback control and auto-calibration. The embedded microprocessor enables precise pressure compensation for dynamic systems. Equipped with manual override knob and fault diagnostic LEDs. Requires 40μm filtered air with ISO 8573-1:2010 Class 3 air quality (max oil content 1mg/m³).
- Robotic end-effector force control systems
- Semiconductor manufacturing equipment
- Medical gas pressure regulation
- Automated leak testing stations
- Precision pneumatic clamping devices
- Packaging machine tension control
Installation guidelines:
Mount in vibration-free environment using included isolation gasket.
Maintain minimum 50mm clearance above unit for heat dissipation.
Use shielded cable for signal lines with proper grounding.
Critical note:
Do not use with oxygen or combustible gases.
Requires upstream installation of 5μm precision filter when used with lubricated air systems.
| Property | Property Value |
|---|---|
| sku | X-PK506 |
