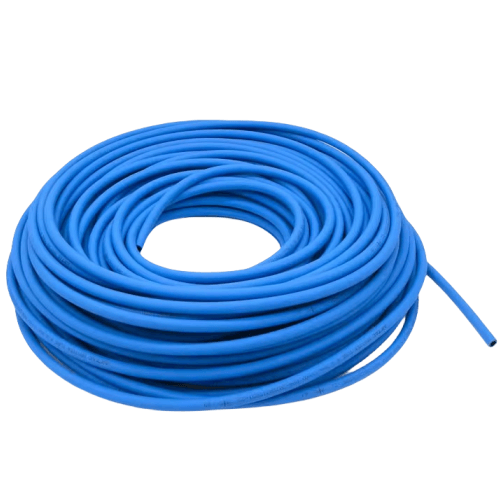

Airtac X-UWS98A PU Flame-Resistant Straight Tube X-UWS98A080050050MBU
AirTAC X-UWS98A PU Flame-Retardant Straight Tube Specifications
- Full Model: X-UWS98A080050050MBU
- Base Model: X-UWS98A
- Material: Polyurethane (PU) with flame-retardant additives
- Certification: UL94 V-0 compliant
- Inner Diameter: 8mm ±0.2mm
- Outer Diameter: 10mm ±0.3mm
- Standard Length: 500mm (customizable 50mm-10m)
- Working Temperature: -40°C to +100°C
- Pressure Range: 0~10 bar (0~1.0MPa)
- Color: Black (standard), orange/yellow optional
- Surface Finish: Smooth bore with wear-resistant texture
- Weight: 0.15kg/m (0.33lb/ft) → 500mm tube ≈ 0.075kg
- Dimensions (spooled): 500mm(L) × 100mm(W) × 100mm(H) (coiled packaging)
- Bend Radius: Minimum 4×OD (40mm)
- Compliance: RoHS 2.0, REACH SVHC-free
Engineered for critical pneumatic applications requiring fire resistance, this PU tube maintains structural integrity at 850°C for 30 seconds (UL94 test criteria). Features anti-static properties (10^6-10^8Ω surface resistance) and oil-resistant formulation. Internal smooth bore reduces pressure drop by 15% compared to standard PU tubes.
- Robotic welding cells in automotive production
- High-temperature oven conveyor systems
- Chemical processing pneumatic networks
- Lithium battery manufacturing facilities
- Plastic injection molding machine peripherals
Installation protocol:
Cut with rotary tube cutter (not utility knife) to prevent oval deformation.
Use 10-12mm stainless steel clamps for connections. Avoid exposure to UV
light for prolonged periods - lifespan reduces by 40% after 2,000hrs of
direct sunlight exposure.
| Property | Property Value |
|---|---|
| sku | X-UWS98A080050050MBU |
