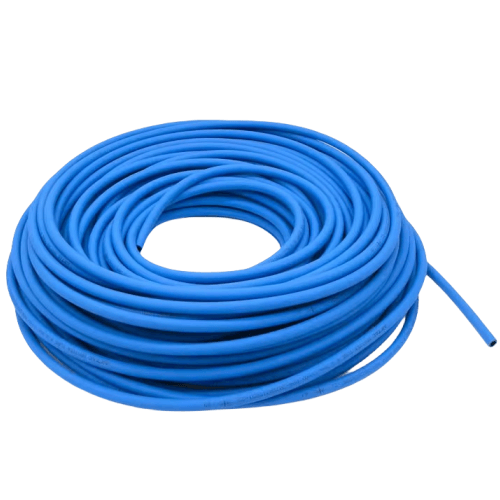

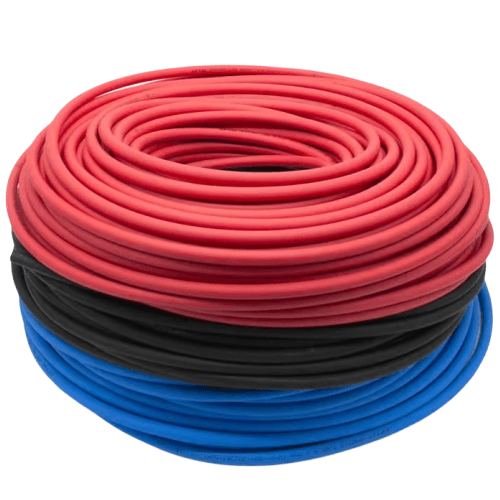

AirTAC X-UWS98A PU Flame-Retardant Straight Tube X-UWS98A080050050MGN Specifications

• Model: X-UWS98A080050050MGN
• Type: Flame-retardant polyurethane (PU) straight tube
• Material: UL94 V0 certified self-extinguishing PU
• Inner Diameter (ID): 8.0 mm ±0.3 mm
• Outer Diameter (OD): 50.0 mm ±0.5 mm
• Standard Length: 500 mm (customizable up to 5 meters)
• Operating Temperature: -40℃ to +120℃ (peak 150℃ for 30 mins)
• Burst Pressure: ≥4.0 MPa (40 bar)
• Working Pressure: 0.2–1.2 MPa (2–12 bar)
• Weight: ~1.2 kg/m (2.64 lb/m)
• Dimensions (per 500mm unit): 500mm(L) × 50mm(OD) × 50mm(ID)
• Color: Standard black with orange spiral stripe (fire hazard indicator)
• Certification: UL94 V0, RoHS, REACH compliant

Heavy-duty flame-retardant tubing with exceptional kink resistance and 300% elongation capacity. Features anti-static properties (10^6–10^8 Ω·cm) and oil-resistant inner lining. Maintains flexibility at -40℃ with a bend radius ≥3×OD. Includes UV stabilization for outdoor use.

Typical Applications:

• Robotic welding station pneumatic lines
• Foundry equipment air supply systems
• Electric vehicle battery cooling systems
• High-temperature CNC machine tool lubrication circuits
• Chemical plant emergency venting conduits

Installation note: Use stainless steel worm-drive clamps (8–12mm band width) for connections. Avoid contact with hydraulic oils containing ester compounds. Conduct monthly inspections for surface abrasion using the integrated wear indicator stripes.
