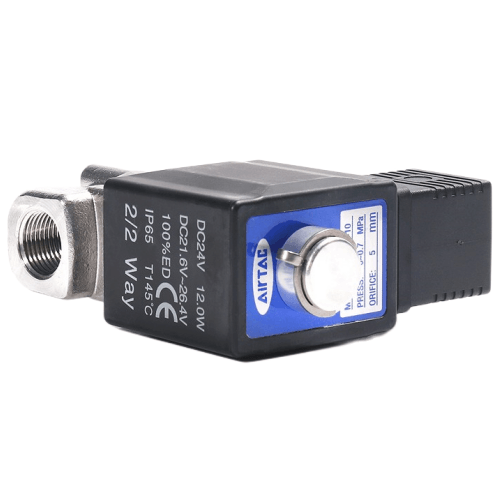

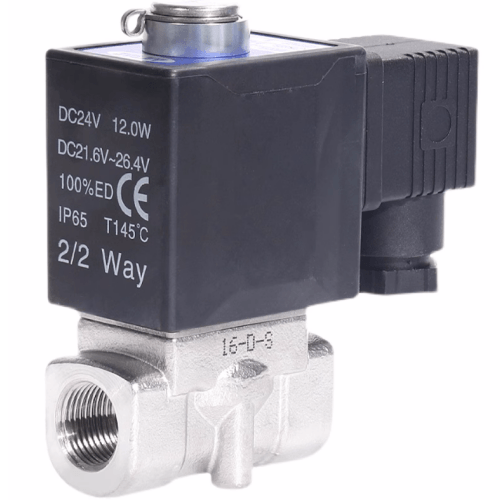

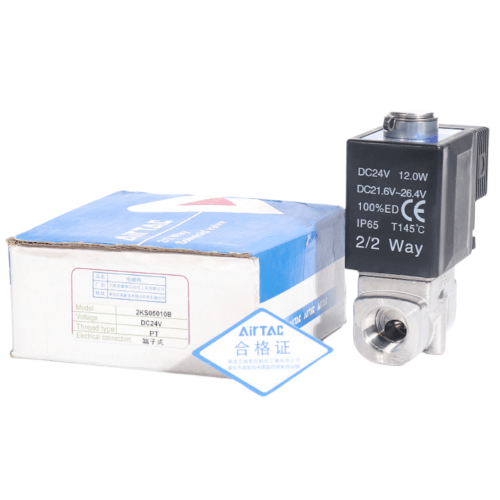

Airtac 2KSL Fluid Control Valve 2KSL03006E
2、Wide pressure range compatibility, available in ultra-high pressure (X), high pressure (H), standard, and large-flow (L) configurations;
3、Compact design with small footprint, lightweight construction, and tool-free assembly/disassembly;
4、SUS304 stainless steel valve body, Class B thermal-rated coil, and standard FPMF (fluororubber) seals compatible with various working media. Custom seal materials available upon consultation with our technical department;
5、IP65-rated coil protection, offering direct lead wire or DIN connector wiring options.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KSL
AirTAC 2KSL Series Fluid Control Valve 2KSL03006E Technical Details
- Model: 2KSL03006E
- Type: 2-position 3-way normally closed (manual override optional)
- Port configuration: 3/2-way (IN/OUT/EXH)
- Port size: G1/8 (BSPP thread)
- Operating pressure range: 0.05–1.0 MPa
- Maximum flow rate: 450 L/min (ANR)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Weight: 320g ±5% (including coil)
- Dimensions: 60mm (L) × 40mm (W) × 80mm (H)
- Seal material: Fluorocarbon rubber (FKM) standard (NBR optional)
- Ambient temperature range: -10℃ to 80℃ (non-freezing)
- Response time: ≤15ms (at 0.5MPa)
- Protection rating: IP67 (coil), IP40 (valve body)
- Mounting orientation: Any (preferred horizontal)
High-flow proportional control valve with optimized spool geometry for precise fluid regulation. Features brass main body with electroless nickel plating for chemical resistance. Integrated manual override allows emergency operation during power failures. Compatible with compressed air and inert gases (N2 recommended for moisture-sensitive applications).
- Pneumatic cylinder speed control in assembly lines
- Coolant flow regulation in CNC machining centers
- Pressure balancing in semiconductor gas delivery systems
- Beverage dispensing equipment flow control
- Automated paint spray systems
Installation guidelines:
Install downstream filter (5μm minimum) and lubricator when using non-lubricated air.
For vertical mounting, orient exhaust port downward to prevent debris accumulation.
Allow 20mm clearance around solenoid for heat dissipation.
| Property | Property Value |
|---|---|
| sku | 2KSL03006E |
| Port Size | PT1/8 |
| Flow Aperture | <4mm> |
