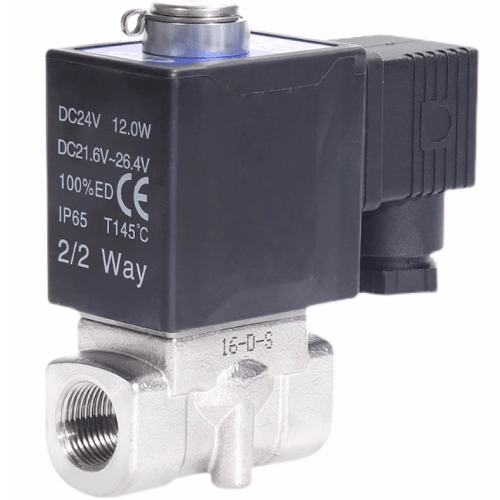

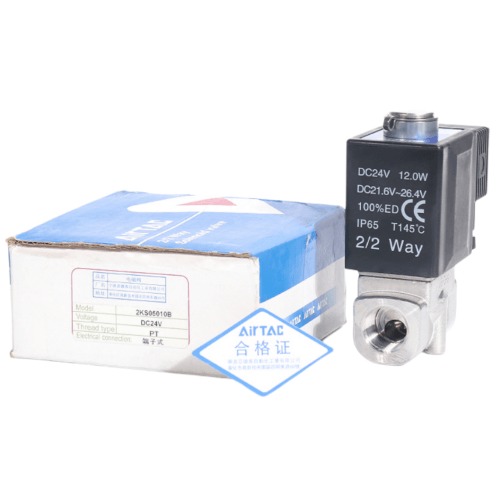

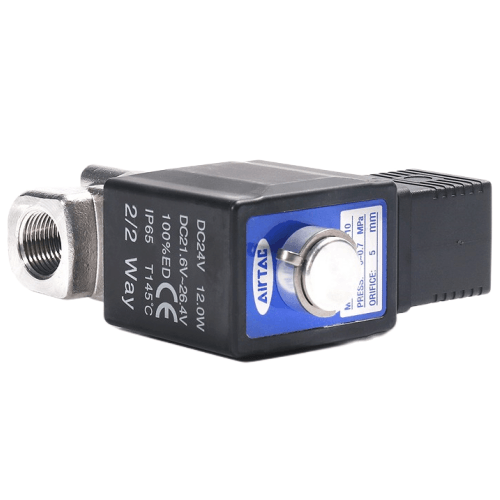

Airtac 2KSL Fluid Control Valve 2KSL03008EI
2、Wide pressure range compatibility, available in ultra-high pressure (X), high pressure (H), standard, and large-flow (L) configurations;
3、Compact design with small footprint, lightweight construction, and tool-free assembly/disassembly;
4、SUS304 stainless steel valve body, Class B thermal-rated coil, and standard FPMF (fluororubber) seals compatible with various working media. Custom seal materials available upon consultation with our technical department;
5、IP65-rated coil protection, offering direct lead wire or DIN connector wiring options.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KSL
AirTAC 2KSL Fluid Control Valve 2KSL03008EI Technical Details
- Model: 2KSL03008EI
- Type: 5/3-way closed center solenoid valve (double solenoid)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.1–1.0 MPa
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: 1200 NL/min (ANR)
- Effective area: 18 mm²
- Seal material: HNBR (Hydrogenated Nitrile) with fluorocarbon coating
- Temperature range: -10℃ to 80℃ (non-freezing)
- Response time: ≤15ms (excitation), ≤20ms (de-excitation)
- Power consumption: 3.5W (DC), 5.5VA (AC)
- Protection rating: IP67 (dust tight & protected against temporary immersion)
- Weight: 780g ±2%
- Dimensions: 98mm(L) × 45mm(W) × 62mm(H) (excluding fittings)
- Port thread depth: 12mm (minimum engagement)
- Coil insulation class: Class F (155℃)
High-flow proportional control valve with center-block function, featuring corrosion-resistant aluminum alloy body and multi-stage sealing system. Designed for precise mid-position control in hydraulic/pneumatic circuits. Requires 25μm filtration and automatic drain maintenance. Compatible with ISO 15407-1 standards.
- Plastic injection molding machine clamping systems
- Automated welding equipment pressure regulation
- Food processing pneumatic actuators (NSF-H1 grease compatible)
- Electric vehicle battery cooling systems
- Hydraulic press emergency stop circuits
Installation protocol:
Mount with vibration-damping brackets in high-shock environments.
Maintain 15° maximum angular deviation from vertical axis.
Apply thread sealant only on male ports (PTFE tape prohibited).
| Property | Property Value |
|---|---|
| sku | 2KSL03008EI |
| Port Size | PT1/4 |
| Flow Aperture | <4mm> |
