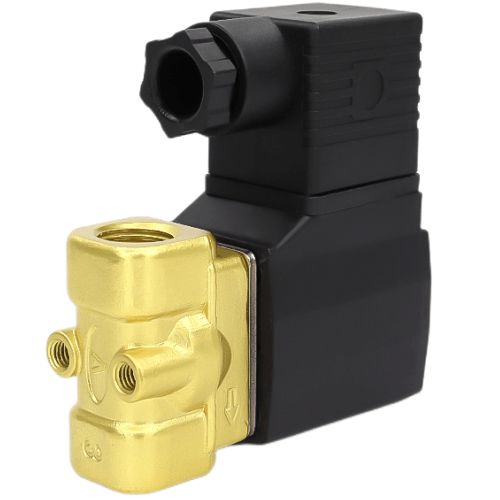

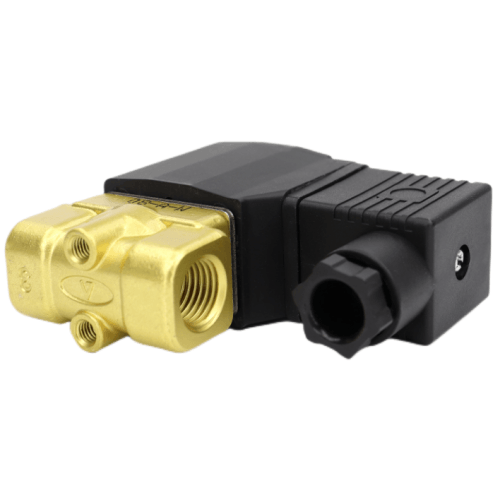

Airtac 2KWH Fluid Solenoid Valve 2KWH03006A
$52.33
Regular price
$59.83
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2KWH03006A
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Direct-acting, normally open 2-way, 2-position solenoid valve featuring rapid switching response and high sensitivity;
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
Installation notes:
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
AirTAC 2KWH03006A Fluid Solenoid Valve Specifications
- Model: 2KWH03006A
- Type: 2-position 3-way direct-acting (normally closed)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.05–1.0 MPa
- Maximum pressure: 1.6 MPa
- Voltage tolerance: ±10% (DC24V/AC110V/AC220V options)
- Coil insulation class: Class F (155℃)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow coefficient (Cv): 0.25
- Seal material: FKM (Fluorocarbon) standard (EPDM optional)
- Ambient temperature: -10℃ to 60℃ (with anti-freeze measures below 0℃)
- Fluid temperature: 0℃ to 60℃
- Power consumption: 2.8W (DC24V), 3.5VA (AC)
- Protection rating: IP67 (coil)/IP65 (valve body)
- Electrical connection: DIN43650 Form A connector
- Weight: 280g ±5%
- Dimensions: 55mm(L) × 35mm(W) × 70mm(H)
High-flow compact solenoid valve with optimized magnetic circuit design for rapid response. Features stainless steel plunger and corrosion-resistant brass body, compatible with air, water, and light oils. Includes manual override function for system debugging.
Typical Applications:
- Industrial cleaning equipment fluid control
- Dental chair water/air switching systems
- Beverage dispensing machine flow control
- Coolant circulation systems in CNC machines
- Laboratory analytical instrument fluid paths
Installation notes:
- Mount in vibration-free environments (max. 1.5G vibration tolerance)
- Install 10μm filter upstream for liquid applications
- Allow minimum 30mm clearance below valve for connector maintenance
- For horizontal mounting, orient coil upward to prevent debris accumulation
| Property | Property Value |
|---|---|
| sku | 2KWH03006A |
| Port Size | PT1/8 |
| Flow Aperture | <2mm> |
| Coil Voltage | AC220V |
