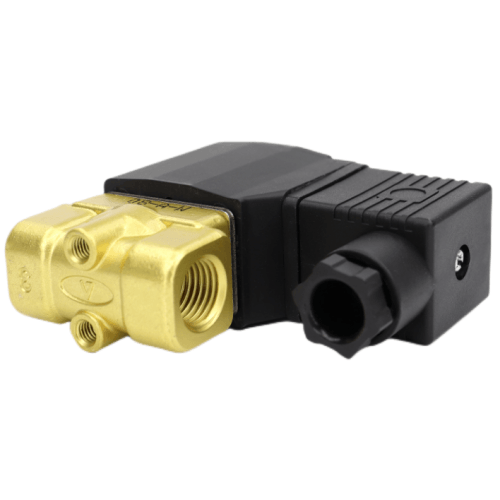

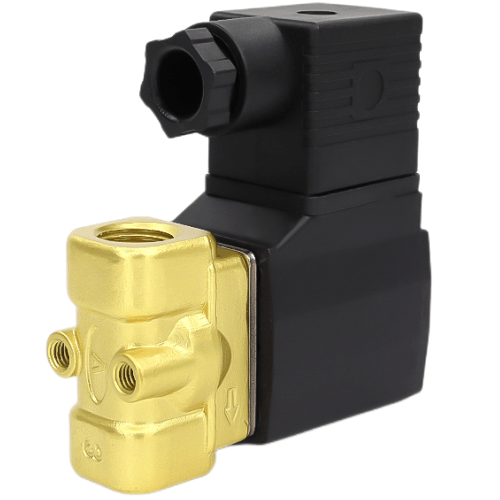

Airtac 2KWH Fluid Solenoid Valve 2KWH03006CI
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
AirTAC 2KWH03006CI Fluid Solenoid Valve Specifications
- Model: 2KWH03006CI
- Type: 2-way normally closed (direct-acting)
- Port size: G3/8" (BSPP thread)
- Operating pressure: 0.1–1.0 MPa
- Max pressure differential: 1.0 MPa
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 2.5W (DC), 3.2VA (AC)
- Flow coefficient (Cv): 1.8
- Response time: ≤15ms (open/close)
- Seal material: EPDM (standard), optional FKM
- Housing material: Stainless steel 304 + reinforced PBT
- Temperature range: -10℃ to 80℃ (EPDM), -10℃ to 150℃ (FKM)
- Protection rating: IP67 (NEMA 4X equivalent)
- Electrical connection: DIN43650 Form A
- Weight: 520g ±5%
- Dimensions: 98mm(L) × 52mm(W) × 83mm(H)
High-flow solenoid valve with zero-pressure differential start capability, featuring stainless steel plunger and anti-clogging design. Optimized for viscous fluids (≤32cSt viscosity) with integrated manual override. Compatible with water, light oils, and compressed air (dew point -20℃).
- Coolant control in CNC machining centers
- Lubrication systems for heavy machinery
- Reverse osmosis water treatment plants
- Beverage dispensing systems (food-grade version available)
- Hydraulic pilot pressure control
Installation requirements:
Install with flow direction arrow alignment. For viscous fluids,
maintain ambient temperature ≥5℃ during operation. Pipe support
required within 150mm of valve body. 30-second flush recommended
before initial use.
Contains permanent magnet -
maintain ≥50mm clearance from sensitive electronics. Not suitable
for glycol-based fluids with EPDM seals.
| Property | Property Value |
|---|---|
| sku | 2KWH03006CI |
| Port Size | PT1/8 |
| Flow Aperture | <2mm> |
| Coil Voltage | AC 110V |
