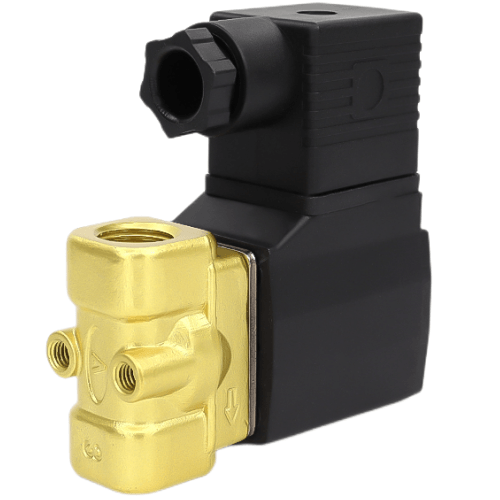

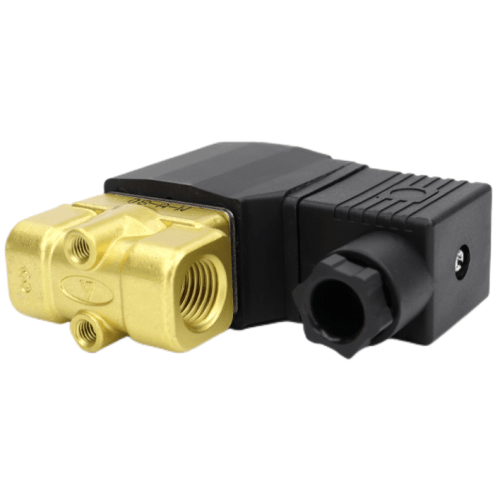

Airtac 2KWH Fluid Solenoid Valve 2KWH03008A
$52.33
Regular price
$59.83
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2KWH03008A
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Direct-acting, normally open 2-way, 2-position solenoid valve featuring rapid switching response and high sensitivity;
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
Installation guidelines:
Mount with 15mm minimum clearance above coil for heat dissipation.
Use thread sealant (PTFE tape/paste) on male ports only.
For pulsating flows, install 10D upstream straight piping.
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
AirTAC 2KWH03008A Fluid Solenoid Valve Technical Details
- Model: 2KWH03008A
- Type: 2-position 2-way normally closed (direct-acting)
- Fluid compatibility: Air, water, light oils (ISO VG32 or below)
- Port size: G1/4 (BSPP thread)
- Operating pressure: 0.1–1.0 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Max flow rate: 200 L/min (Cv=0.55)
- Coil type: Class F insulation (155℃ rating)
- Seal material: NBR (Nitrile) standard, optional FKM/Viton for chemical resistance
- Temperature range: -5℃ to 80℃ (fluid/ambient)
- Response time: ≤25ms (energize), ≤30ms (de-energize)
- Power consumption: 2.8W (DC), 3.5VA (AC)
- Weight: 320g ±5% (excluding connector)
- Dimensions: 62mm(L) × 42mm(W) × 78mm(H) (port axis to coil top)
- Protection rating: IP67 (coil), IP65 (valve body)
- Port alignment: Dual horizontal/vertical mounting capability
High-flow compact solenoid valve with reinforced stainless steel plunger system, optimized for intermittent and continuous duty cycles. Features double-sealed stem construction with dust wiper, compatible with mildly corrosive fluids. Includes manual override button for system debugging.
Industrial Applications:
- Dispenser systems in food/beverage production lines
- Coolant control for CNC machining centers
- Reverse osmosis water treatment plants
- Hydroponic nutrient delivery systems
- Chemical dosing units in pharmaceutical manufacturing
Installation guidelines:
Mount with 15mm minimum clearance above coil for heat dissipation.
Use thread sealant (PTFE tape/paste) on male ports only.
For pulsating flows, install 10D upstream straight piping.
Service recommendations:
- Replace coil if surface temperature exceeds 100℃ during operation
- Flush system quarterly with filtered air/fluid to prevent seat contamination
- Check manual override function during PM schedules
| Property | Property Value |
|---|---|
| sku | 2KWH03008A |
| Port Size | PT1/4 |
| Flow Aperture | <2mm> |
| Coil Voltage | AC220V |
