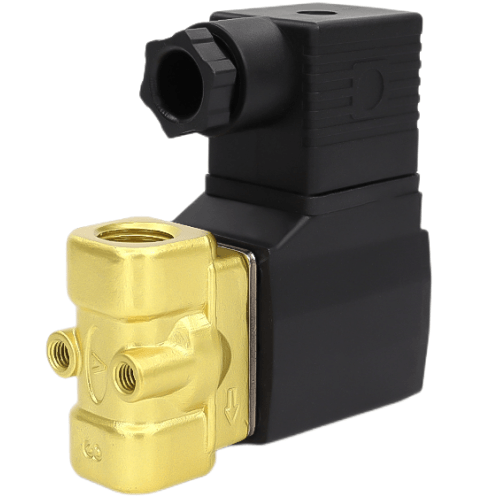

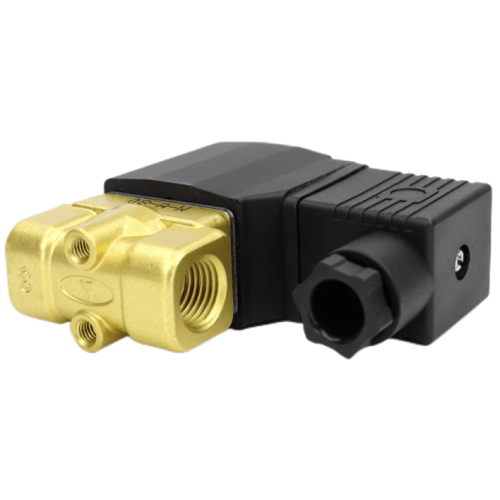

Airtac 2KWH Fluid Solenoid Valve 2KWH03008E
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
AirTAC 2KWH03008E Fluid Solenoid Valve Specifications
- Model: 2KWH03008E
- Type: 2-way normally closed (direct-acting)
- Port size: G1/8 (BSPP thread)
- Operating pressure: 0~1.0 MPa (0~145 PSI)
- Voltage options: DC12V, DC24V, AC110V 50/60Hz, AC220V 50/60Hz
- Weight: 0.5 kg (1.1 lbs)
- Dimensions: 98mm(L) × 44mm(W) × 55mm(H)
- Seal material: EPDM rubber (NBR optional)
- Temperature range: -5℃ to 80℃ (fluid temperature)
- Power consumption: 5W (AC), 4.5W (DC)
- Flow coefficient (Cv): 1.6
- Response time: ≤15ms (open/close)
- Protection rating: IP67 (dust/water resistant)
- Fluid compatibility: Water, air, light oils (ISO VG32 or below)
High-flow solenoid valve with zero-pressure start capability, featuring stainless steel plunger and corrosion-resistant brass body. The low-hysteresis design ensures precise fluid control with 1 million cycle durability. Includes manual override and LED operation indicator. Requires 25μm filtration for optimal performance.
- Industrial water cooling systems
- Chemical dosing equipment
- Beverage dispenser liquid control
- Hydraulic system pilot controls
- Automated car wash water management
- Medical device sterilization systems
Installation guidelines:
Mount horizontally with arrow aligned to flow direction. Install vibration dampeners when used with pulsating pumps.
Allow 20-minute dry-run break-in period for new installations.
| Property | Property Value |
|---|---|
| sku | 2KWH03008E |
| Port Size | PT1/4 |
| Flow Aperture | <2mm> |
| Coil Voltage | AC24V |
