Airtac 2KWH Fluid Solenoid Valve 2KWH03008EI
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH

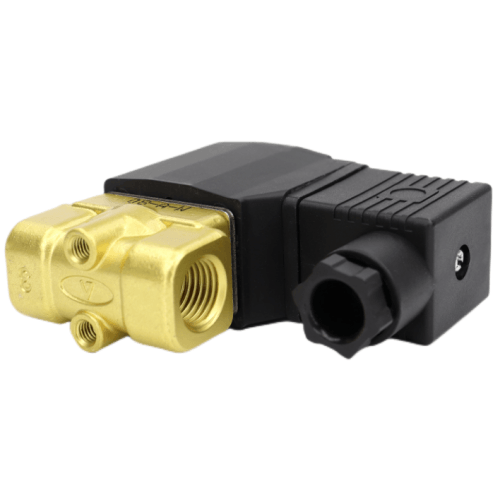

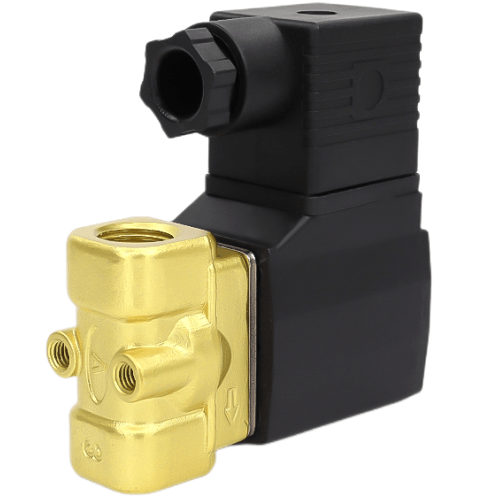

AirTAC 2KWH03008EI Fluid Solenoid Valve Specifications
- Model: 2KWH03008EI
- Type: 2-position, 3-way normally closed (direct-acting)
- Port size: G1/8 (ISO228/1 standard)
- Operating pressure: 0.05–1.0 MPa
- Voltage options: DC12V (±10%), DC24V (±10%)
- Weight: 0.38 kg ±2%
- Dimensions: 55mm(L) × 40mm(W) × 71.5mm(H)
- Seal material: FKM fluorocarbon (Viton® equivalent)
- Temperature range: -10℃ to 150℃ (with FKM seals)
- Power consumption: 2.5W max @ DC24V
- Flow coefficient (Cv): 0.25
- Response time: ≤15ms (excitation), ≤20ms (de-excitation)
- Protection rating: IP67 (dustproof/water immersion resistant)
- Port thread depth: 12mm (minimum engagement recommended)
High-pressure fluid control valve with chemically resistant seals, featuring brass body construction with PPS coil housing. Designed for aggressive media including compressed air, inert gases, and light hydraulic oils (ISO VG32 or lower). Includes manual override function via integrated pushbutton.
- Chemical injection systems (automated dosing)
- Semiconductor manufacturing gas control
- Industrial dishwasher fluid circuits
- Hydraulic test bench sequencing
- Beverage filling line lubrication control
Installation guidelines:
Maximum media viscosity 20mm²/s. Requires upstream 10μm filtration.
For horizontal mounting only. Allow 15mm clearance below valve for
electrical connector access. Not compatible with phosphate ester fluids.
| Property | Property Value |
|---|---|
| sku | 2KWH03008EI |
| Port Size | PT1/4 |
| Flow Aperture | <2mm> |
| Coil Voltage | AC24V |
