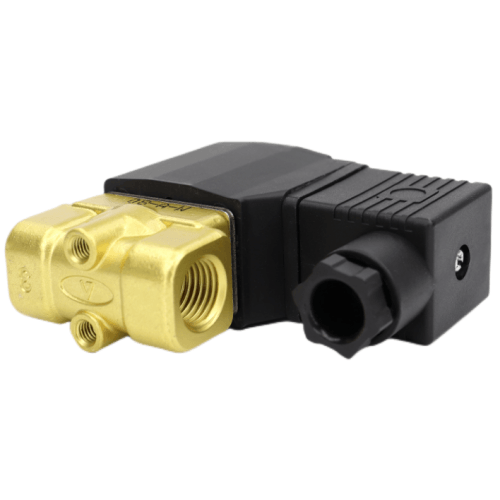

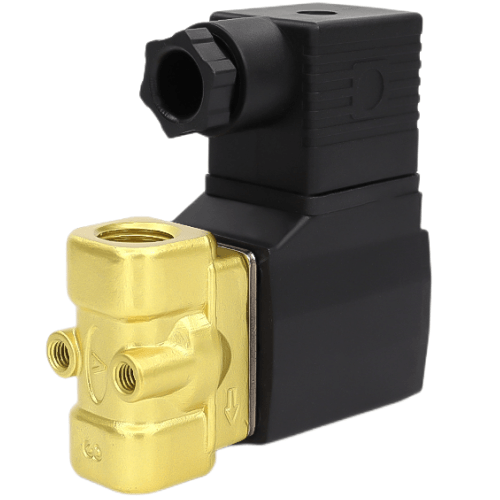

Airtac 2KWH Fluid Solenoid Valve 2KWH05010EI
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
AirTAC 2KWH05010EI Fluid Solenoid Valve Specifications
- Model: 2KWH05010EI
- Type: 2-way normally closed (direct-acting)
- Port size: G1/2" (DN15)
- Fluid compatibility: Water, air, light oils (non-corrosive media)
- Pressure range: 0.1–1.0 MPa
- Voltage options: DC24V (±10%), AC110V/50-60Hz, AC220V/50-60Hz
- Power consumption: ≤3.5W (DC), ≤5VA (AC)
- Seal material: EPDM (standard), optional FKM/Viton
- Body material: Brass CW617N (nickel-plated)
- Temperature range: -5℃ to 80℃ (fluid dependent)
- Flow coefficient (Cv): 3.0
- Response time: ≤50ms (open/close)
- Protection rating: IP67 (connector included)
- Weight: 1.2kg ±5%
- Dimensions: 120mm(L) × 80mm(W) × 65mm(H)
High-flow fluid control valve with corrosion-resistant construction, featuring manual override and LED status indicator. Designed for continuous duty cycles with 500,000+ operations lifespan. Requires 100μm filtration for optimal performance. Suitable for both liquid and pneumatic systems with bidirectional flow capability.
- Industrial water cooling circuits
- Chemical dosing systems (compatible media only)
- Irrigation control in agricultural automation
- Beverage production line liquid control
- Car wash equipment water management
Installation guidelines:
Mount horizontally with arrow aligned to flow direction. Install vibration dampeners if used in pumping systems.
Bleed air pockets completely during liquid system commissioning.
| Property | Property Value |
|---|---|
| sku | 2KWH05010EI |
| Port Size | PT3/8 |
| Flow Aperture | <4mm> |
| Coil Voltage | AC24V |
