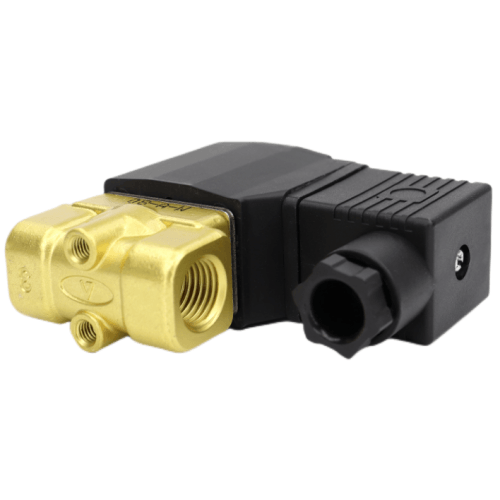

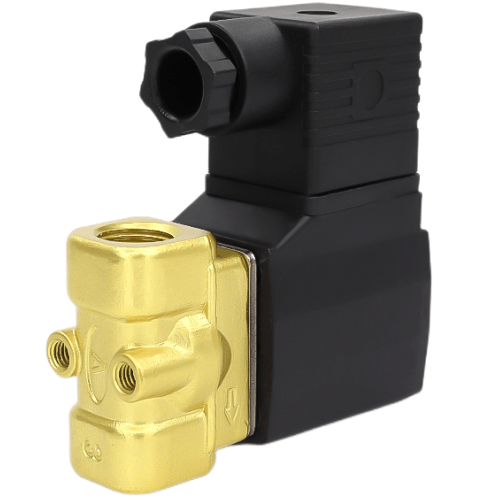

Airtac 2KWH Fluid Solenoid Valve 2KWH05015BI
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
AirTAC 2KWH05015BI Fluid Solenoid Valve Specifications
- Model: 2KWH05015BI
- Type: 2/2-way normally closed (direct-acting)
- Fluid compatibility: Water, air, light oils (ISO VG32 or below)
- Port size: G1/8 (BSPP thread)
- Operating pressure: 0.1–1.0 MPa
- Voltage options: DC12V (±10%), DC24V (±10%)
- Coil power: 5W (Class F insulation)
- Max flow rate: 18 L/min (water at 0.5MPa)
- Body material: Stainless steel (SUS304)
- Seal material: FKM fluorocarbon (standard), EPDM optional
- Ambient temperature: -10℃ to 80℃
- Fluid temperature: 0℃ to 60℃
- Response time: ≤30ms (at rated voltage)
- Protection rating: IP67 (coil), IP65 (valve body)
- Weight: 300g ±5% (including coil)
- Dimensions: 60mm(L) × 30mm(W) × 45mm(H)
- Port connection: 6mm tube OD compression fitting
- Hysteresis: ≤10% of rated voltage
High-response fluid control valve with zero pressure start capability, featuring a copper-free aluminum alloy coil housing for corrosion resistance. The dual-chamber design prevents fluid contamination between ports. Includes surge protection diode and manual override button for system debugging. Requires 50μm filtration upstream.
- Industrial water cooling circulation systems
- Medical equipment fluid control (dialysis machines, sterilizers)
- Beverage dispensing machine flow control
- Photovoltaic panel cleaning systems
- Hydroponic nutrient delivery automation
Installation note:
Mount in vibration-free environment with flow direction matching body arrow.
For continuous operation, maintain fluid pH between 6.5-8.0. Allow 2-minute
dry-run tolerance during commissioning.
| Property | Property Value |
|---|---|
| sku | 2KWH05015BI |
| Port Size | PT 1/2 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC24V |
