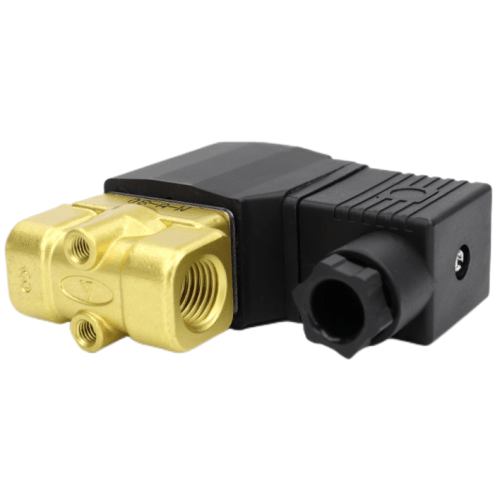

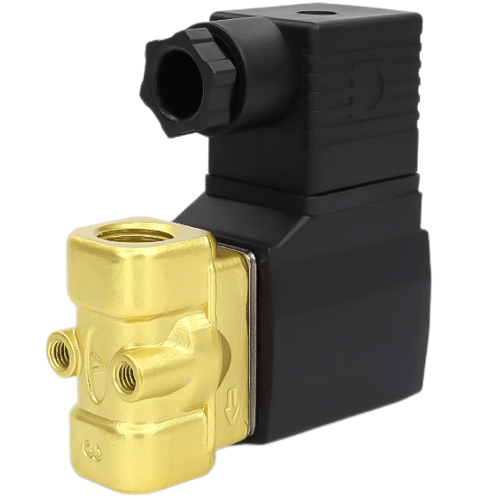

Airtac 2KWH Fluid Solenoid Valve 2KWH05015E
$73.27
Regular price
$80.77
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2KWH05015E
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Direct-acting, normally open 2-way, 2-position solenoid valve featuring rapid switching response and high sensitivity;
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
Installation guidelines:
Mount with torque ≤25N·m using backup wrench. For viscous fluids,
maintain ambient temperature above 5℃. Drain ports must face downward
in vertical piping systems.
Compatibility note:
Not suitable for chlorine-based solvents or strong oxidizers.
Always perform material compatibility tests with non-standard media.
2. Extensive pressure range adaptability with model options: Ultra-high pressure (X), High pressure (H), Standard, and Large flow capacity (L);
3. Compact design with minimized footprint, lightweight construction, and tool-free installation for enhanced maintenance efficiency;
4. Brass valve body with Class B thermal-rated coil. Standard FPMF (Fluoroelastomer) seals ensure compatibility across diverse media. Customizable seal materials available upon technical consultation;
5. IP65-rated coil protection and multiple wiring configurations: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWH
AirTAC 2KWH05015E Fluid Solenoid Valve Technical Details
- Model: 2KWH05015E
- Type: 2-position, 3-way direct acting (fluid control)
- Port size: G1/8 (BSPP thread)
- Operating pressure range: 0.02–0.8 MPa
- Voltage variants: DC24V (±10%), AC220V (±10% 50/60Hz)
- Fluid temperature range: -5℃ to 80℃
- Ambient temperature: -20℃ to 50℃
- Flow capacity: 2.0 Cv (Kv=1.7)
- Seal materials: FKM (Fluorocarbon rubber) / NBR optional
- Body material: Brass (electroless nickel plated)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Protection class: IP67 (dust/water resistant)
- Weight: 420g ±5%
- Dimensions: 58mm(L) × 50mm(W) × 76mm(H)
- Port orientation: Horizontal manifold mounting
High-flow fluid control valve with anti-clogging spool design, optimized for viscous liquids and chemical solutions. Features bubble-tight shutoff capability and 1 million cycle durability. Compatible with water, light oils, and neutral gases. Requires 10μm filtration upstream.
Industrial Implementations:
- Coolant circulation systems in CNC machining centers
- Chemical dosing systems for water treatment plants
- Lubricant distribution in automated assembly lines
- Medical sterilization equipment fluid control
- Hydroponic nutrient delivery automation
Installation guidelines:
Mount with torque ≤25N·m using backup wrench. For viscous fluids,
maintain ambient temperature above 5℃. Drain ports must face downward
in vertical piping systems.
Compatibility note:
Not suitable for chlorine-based solvents or strong oxidizers.
Always perform material compatibility tests with non-standard media.
| Property | Property Value |
|---|---|
| sku | 2KWH05015E |
| Port Size | PT 1/2 |
| Flow Aperture | <4mm> |
| Coil Voltage | AC24V |
