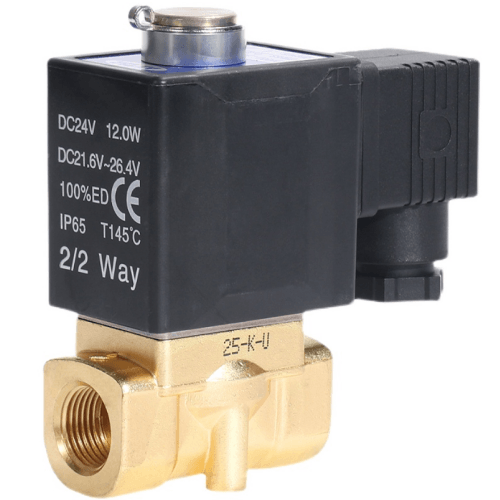

Airtac 2KWL Fluid Solenoid Valve 2KWL03006AI
2. Wide pressure range adaptability, offering Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) models;
3. Compact design with minimized footprint, reduced weight, and tool-free modular assembly for easy maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (Fluorocarbon Rubber) seals compatible with diverse media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection, wiring options include Lead Wire or DIN Connector configurations.
**Category**: Fluid Solenoid Valve | **Brand**: AirTAC | **Series**: 2KWL
AirTAC 2KWL Fluid Solenoid Valve 2KWL03006AI Technical Details
- Model: 2KWL03006AI
- Type: 3-position, 5-way direct acting (center closed)
- Port size: PT1/8 (G1/8 available for EU variants)
- Operating pressure: 0.05–0.7 MPa (7-100 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 250g ±5% (including coil)
- Dimensions: 70mm(L) × 45mm(W) × 100mm(H)
- Seal material: HNBR rubber (fluorine-free alternative to FKM)
- Temperature range: -10℃ to 80℃ (non-freezing conditions)
- Power consumption: 2.5W (DC models), 4.5VA (AC models)
- Response time: ≤20ms (exhaust to full actuation)
- Flow rate: 650 NL/min (at 0.5 MPa)
- Protection rating: IP67 (dustproof and temporary immersion resistant)
- Port thread depth: 12mm (minimum engagement recommended)
High-flow proportional control valve with zero-pressure start capability, featuring manual override and position indicator. The aluminum alloy body with hard anodized coating ensures durability in humid environments. Designed for applications requiring precise mid-position control with 3.5 bar minimum operating differential pressure.
- Multi-axis pneumatic actuator synchronization
- Bottle capping machine pressure sequencing
- CNC machine tool clamping systems
- Wastewater treatment plant pneumatic gates
- Lithium battery production line vacuum handling
Maintenance protocol:
Lubricate spool assembly every 2 million cycles using ISO VG32 turbine oil.
Avoid mounting near high-frequency vibration sources (>50Hz) without dampers.
| Property | Property Value |
|---|---|
| sku | 2KWL03006AI |
| Port Size | PT1/8 |
| Flow Aperture | <4mm> |
| Coil Voltage | AC220V |
