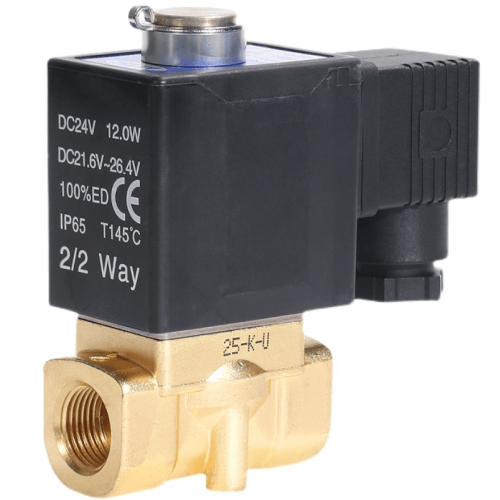

Airtac 2KWL Fluid Solenoid Valve 2KWL03008BI
2. Wide pressure range adaptability, offering Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) models;
3. Compact design with minimized footprint, reduced weight, and tool-free modular assembly for easy maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (Fluorocarbon Rubber) seals compatible with diverse media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection, wiring options include Lead Wire or DIN Connector configurations.
**Category**: Fluid Solenoid Valve | **Brand**: AirTAC | **Series**: 2KWL
AirTAC 2KWL Fluid Solenoid Valve 2KWL03008BI Technical Details
- Model: 2KWL03008BI
- Type: 2-position 3-way direct-acting (solenoid pilot-operated)
- Port configuration: 3/2-way normally closed
- Port size: G1/8 (ISO228/1 standard)
- Thread type: Metric (M5x0.8 optional adapter available)
- Operating pressure: 0.05–1.0 MPa (7-145 PSI)
- Max flow rate: 750 L/min (Cv=1.2 at 0.5 MPa)
- Voltage options: DC12V (±10%), DC24V (±10%), AC24V/110V/220V (±15%)
- Power consumption: 1.8W (DC), 3.5VA (AC)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Seal material: Fluororubber (FKM) for high chemical resistance
- Body material: Anodized aluminum alloy (corrosion-resistant)
- Temperature range: -10℃ to 80℃ (with 0-95% RH non-condensing)
- Protection rating: IP67 (dust-tight & temporary immersion protected)
- Weight: 230g ±5% (including coil assembly)
- Dimensions: 55mm(L) × 35mm(W) × 68mm(H) (excluding connectors)
- Port spacing: 18mm center-to-center (horizontal ports)
- Expected lifespan: 50 million cycles (under rated conditions)
High-performance fluid control valve featuring low-hysteresis operation and bubble-tight sealing. The dual-coil optimized design ensures stable actuation even with viscosity variations (up to 50cSt). Integrated surge protection circuitry prevents coil burnout. Compatible with compressed air, inert gases, and light hydraulic fluids (ISO VG32 or thinner). Requires 5μm filtration for optimal performance.
- Automated liquid dispensing systems (adhesives, lubricants)
- Coolant flow control in CNC machining centers
- Medical gas distribution panels
- Semiconductor wafer cleaning equipment
- Hydraulic pilot controls for heavy machinery
- Beverage filling line pressure regulation
Installation guidelines:
Mount in vibration-free environment with ±5° tolerance from vertical orientation.
Use anti-vibration washers if flow pulsation exceeds 0.2MPa.
Allow 15mm clearance around coil for heat dissipation.
Pipe alignment must avoid mechanical stress on valve body.
| Property | Property Value |
|---|---|
| sku | 2KWL03008BI |
| Port Size | PT1/4 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC24V |
