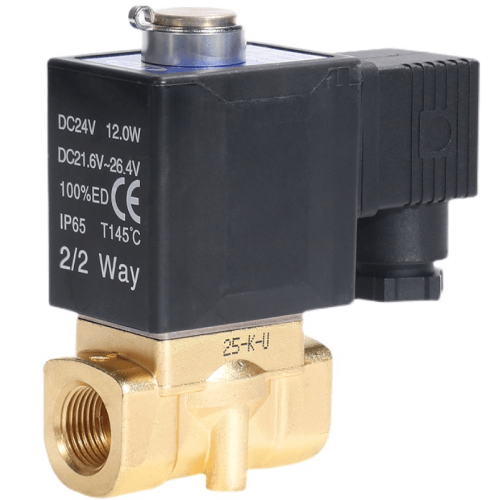

Airtac 2KWL Fluid Solenoid Valve 2KWL05010A
2. Wide pressure range adaptability, offering Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) models;
3. Compact design with minimized footprint, reduced weight, and tool-free modular assembly for easy maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (Fluorocarbon Rubber) seals compatible with diverse media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection, wiring options include Lead Wire or DIN Connector configurations.
**Category**: Fluid Solenoid Valve | **Brand**: AirTAC | **Series**: 2KWL
AirTAC 2KWL05010A Fluid Solenoid Valve Technical Details
- Model: 2KWL05010A
- Type: 2-position 3-way normally closed (direct-acting)
- Fluid compatibility: Air, water, light oils (ISO VG32 or lower)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.7 MPa
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Max flow rate: 650 L/min (Cv=1.2)
- Weight: 220g ±5% (excluding connectors)
- Dimensions: 54mm(L) × 38mm(W) × 67mm(H)
- Seal material: NBR/FKM dual-material composite
- Temperature range: -5℃ to 80℃ (fluid/ambient)
- Power consumption: 2.5W (DC), 3.2VA (AC)
- Response time: ≤30ms (excitation), ≤50ms (de-energization)
- Protection rating: IP67 (connector installed)
- Port thread depth: 9.5mm (minimum engagement)
Multi-fluid compatible solenoid valve with direct-acting mechanism for precise flow control in both liquid and pneumatic systems. Features corrosion-resistant brass body with integrated strainer (100 mesh) and manual override function. Designed for applications requiring frequent cycling (≥5 million cycles MTBF). Requires 10-μm filtration for optimal performance.
- Industrial cleaning equipment water flow control
- Chemical dosing systems with mild solvents
- Compact pneumatic tool lubrication circuits
- Medical device sterilization line automation
- Food processing machinery air/water mix control
Installation guidelines:
Mount in any orientation except coil-down position. Install downstream
pressure regulator when handling liquids. Allow 15-minute dry-run
conditioning before full load operation. Replace seals annually in
continuous duty applications.
| Property | Property Value |
|---|---|
| sku | 2KWL05010A |
| Port Size | PT3/8 |
| Flow Aperture | 7mm |
| Coil Voltage | AC220V |
