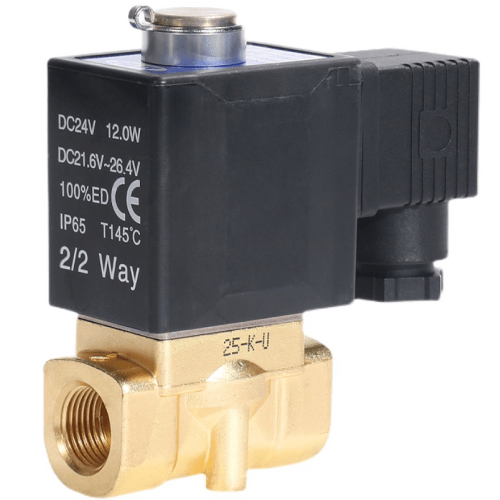

Airtac 2KWL Fluid Solenoid Valve 2KWL05010CI
2. Wide pressure range adaptability, offering Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) models;
3. Compact design with minimized footprint, reduced weight, and tool-free modular assembly for easy maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (Fluorocarbon Rubber) seals compatible with diverse media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection, wiring options include Lead Wire or DIN Connector configurations.
**Category**: Fluid Solenoid Valve | **Brand**: AirTAC | **Series**: 2KWL
AirTAC 2KWL05010CI Fluid Solenoid Valve Technical Details
- Model: 2KWL05010CI
- Type: 2-position 3-way direct-acting (fluid control)
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.02–0.8 MPa
- Voltage options: DC12V (±10%), DC24V (±10%), AC24V (±15%), AC110V (±15%), AC220V (±15%)
- Weight: 310g ±5% (with coil)
- Dimensions: 62mm(L) × 50mm(W) × 78mm(H) (excluding ports)
- Seal material: FKM (Viton® equivalent) for chemical resistance
- Temperature range: -10℃ to 150℃ (fluid temp), -5℃ to 80℃ (ambient)
- Flow coefficient (Cv): 1.2 (Kv=1.0)
- Response time: ≤15ms (excitation), ≤20ms (de-energization)
- Power consumption: 2.5W (DC), 3.2VA (AC)
- Protection rating: IP67 (coil), IP65 (valve body)
- Compatible fluids: Water, air, light oils (ISO VG32 or lower), neutral gases
- Port material: Brass (CuZn39Pb3) with electroless nickel plating
High-pressure fluid control valve with enhanced chemical resistance, featuring low-hysteresis spool design for precise flow regulation. The epoxy-encapsulated coil provides moisture protection in humid environments. Requires 10μm filtration upstream and minimum 0.3 m/s flow velocity to prevent particle sedimentation.
- Coolant line management in CNC machining centers
- Reverse osmosis (RO) water treatment systems
- Lubrication oil dispensing in automated assembly lines
- Chemical dosing systems for semiconductor manufacturing
- Hydraulic pilot control circuits
Installation guidelines:
Mount with flow direction arrow aligned. For viscous fluids (>46 cSt),
install bypass circuit with pressure relief. Allow 15mm clearance
below valve for drain port access. Anti-vibration mounting recommended
for pulsating systems.
| Property | Property Value |
|---|---|
| sku | 2KWL05010CI |
| Port Size | PT3/8 |
| Flow Aperture | 7mm |
| Coil Voltage | AC 110V |
