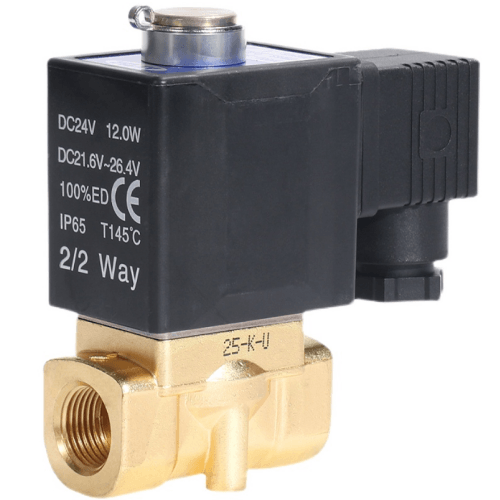

Airtac 2KWL Fluid Solenoid Valve 2KWL05010FI
2. Wide pressure range adaptability, offering Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) models;
3. Compact design with minimized footprint, reduced weight, and tool-free modular assembly for easy maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (Fluorocarbon Rubber) seals compatible with diverse media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection, wiring options include Lead Wire or DIN Connector configurations.
**Category**: Fluid Solenoid Valve | **Brand**: AirTAC | **Series**: 2KWL
AirTAC 2KWL05010FI Fluid Solenoid Valve Technical Details
- Model: 2KWL05010FI
- Type: 2-position, 5-port direct-acting solenoid valve
- Port configuration: 5/2-way (dual solenoid control)
- Port size: G1/8 (ISO228/1 standard)
- Operating pressure range: 0.1-1.0 MPa (14.5-145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: 750 L/min (Cv=1.3) at 0.5MPa
- Seal material: Fluororubber (FKM) for high chemical resistance
- Temperature tolerance: -10℃ to 80℃ (with intermittent operation up to 100℃)
- Response time: ≤30ms (energize), ≤50ms (de-energize)
- Protection class: IP67 (dustproof and temporary immersion protection)
- Weight: 480g ±2% (without connectors)
- Dimensions: 96mm(L) × 34mm(W) × 48mm(H) (body only), 122mm(L) with connectors
- Port thread depth: 12mm (minimum engagement length)
- Hysteresis: ≤0.02MPa (pressure differential for stable switching)
High-flow proportional control valve with reinforced coil insulation (Class H) for demanding industrial environments. Features dual manual override options (push-button and rotary types) and surge protection circuitry. Compatible with ISO VG32 hydraulic fluids and compressed air. Requires 5μm filtration for optimal performance.
- Automated production line actuator control systems
- Hydraulic press sequencing circuits
- CNC machine tool coolant flow regulation
- Food processing pneumatic systems (NSF-certified variants available)
- Semiconductor manufacturing gas control
Installation guidelines:
Maintain minimum 20mm clearance from adjacent components for heat dissipation.
Use anti-vibration mounts in high-frequency applications (>15Hz).
Lubricate seals with ISO VG32-compatible grease during maintenance.
- ISO 5599/1 mounting pattern compatibility
- NAMUR interface option (2KWL05010FI-N)
- DIN 43650 Form A electrical connection
| Property | Property Value |
|---|---|
| sku | 2KWL05010FI |
| Port Size | PT3/8 |
| Flow Aperture | 7mm |
| Coil Voltage | DC12V |
