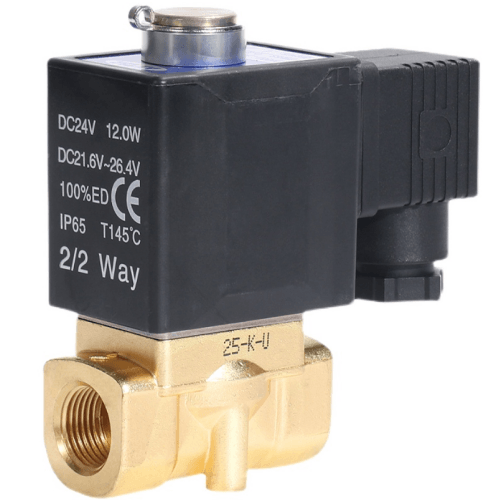

Airtac 2KWL Fluid Solenoid Valve 2KWL05015C
2. Wide pressure range adaptability, offering Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) models;
3. Compact design with minimized footprint, reduced weight, and tool-free modular assembly for easy maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (Fluorocarbon Rubber) seals compatible with diverse media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection, wiring options include Lead Wire or DIN Connector configurations.
**Category**: Fluid Solenoid Valve | **Brand**: AirTAC | **Series**: 2KWL
AirTAC 2KWL05015C Fluid Solenoid Valve Specifications
- Model: 2KWL05015C
- Type: 2-position 5-port direct-acting (double solenoid)
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.1–1.0 MPa (14.5–145 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow rate: 750 L/min (ANR) at 0.5 MPa
- Response time: ≤15ms (excitation), ≤20ms (reset)
- Weight: 350g ±5% (including coil)
- Dimensions: 76mm(L) × 48mm(W) × 48mm(H)
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Temperature range: -10℃ to 80℃ (non-freezing conditions)
- Power consumption: 2.8W (DC models), 4.5VA (AC models)
- Protection rating: IP67 (coil protection)
- Port thread depth: 12mm (minimum engagement)
High-flow proportional control valve with dual solenoid operation, featuring a stainless steel plunger system for extended cycle life (≥50 million operations). The encapsulated coil design prevents fluid ingress while maintaining thermal stability. Requires 5μm filtered air/liquid with viscosity ≤10cSt. Compatible with compressed air, inert gases, and light hydraulic fluids (ISO VG32 or lighter).
- Automated assembly line clamping systems
- Medical device pneumatic sequencing
- Packaging machine rotary actuator control
- Semiconductor wafer handling robots
- Food processing liquid dispensing systems
- Electric vehicle battery cooling circuits
Installation protocol:
Mount with manifold brackets using M4×12mm screws (1.2N·m torque limit).
Maintain 15mm clearance below valve for service access. Lubricate O-rings
with silicone grease (Parker O-Lube 111 or equivalent) during maintenance.
| Property | Property Value |
|---|---|
| sku | 2KWL05015C |
| Port Size | PT 1/2 |
| Flow Aperture | 7mm |
| Coil Voltage | AC 110V |
