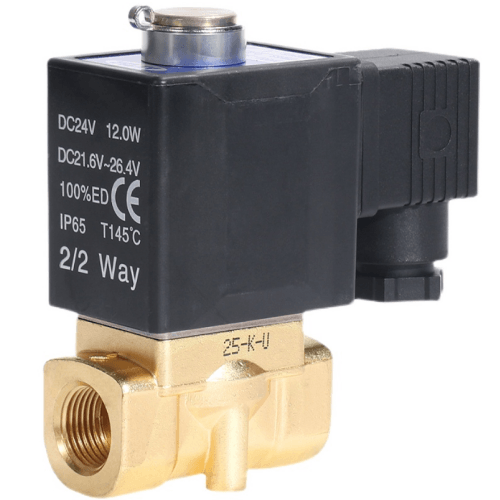

Airtac 2KWL Fluid Solenoid Valve 2KWL05015FI
2. Wide pressure range adaptability, offering Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) models;
3. Compact design with minimized footprint, reduced weight, and tool-free modular assembly for easy maintenance;
4. Brass valve body, B-class thermal-rated coil, and standard FPMF (Fluorocarbon Rubber) seals compatible with diverse media. Custom seal materials available upon consultation with technical department;
5. IP65-rated coil protection, wiring options include Lead Wire or DIN Connector configurations.
**Category**: Fluid Solenoid Valve | **Brand**: AirTAC | **Series**: 2KWL
AirTAC 2KWL05015FI Fluid Solenoid Valve Technical Details
- Model: 2KWL05015FI
- Type: 2-position, 5-port direct-acting (monostable)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–0.7 MPa (liquid), 0.15–0.7 MPa (gas)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: 0.6 Cv (Kv=0.54 m³/h)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Weight: 400g ±5% (with coil)
- Dimensions: 98mm(L) × 44mm(W) × 53mm(H)
- Seal materials: FKM (fluorocarbon rubber) main seals, EPDM optional
- Fluid temperature: -10℃ to 80℃ (FKM seals), -10℃ to 60℃ (EPDM)
- Ambient temperature: -5℃ to 50℃
- Power consumption: 2.8W (DC), 3.5VA (AC)
- Protection class: IP67 (coil), IP65 (valve body)
- Port thread depth: 12mm (internal)
High-flow compact solenoid valve with reinforced epoxy-coated aluminum body and brass core components. Features manual override button for system debugging and failsafe position indication window. Designed for intermittent (ED=60%) or continuous duty with heat-dissipating coil design. Requires 10μm filtration for liquid applications.
- Coolant flow control in CNC machining centers
- Hydraulic system pilot controls
- Beverage dispensing systems
- Medical fluid handling equipment
- Semiconductor wafer cleaning machines
- Diesel fuel injection test benches
Installation guidelines:
Mount in horizontal pipe orientation only. Allow 15mm clearance above coil for heat dissipation.
Flush system with clean fluid for 30 seconds before initial operation. Lubricant-free design -
do not apply grease to sliding parts. Annual seal inspection recommended for liquid applications.
| Property | Property Value |
|---|---|
| sku | 2KWL05015FI |
| Port Size | PT 1/2 |
| Flow Aperture | 7mm |
| Coil Voltage | DC12V |
