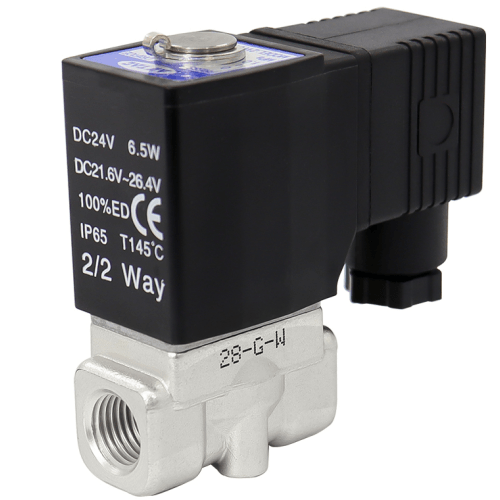

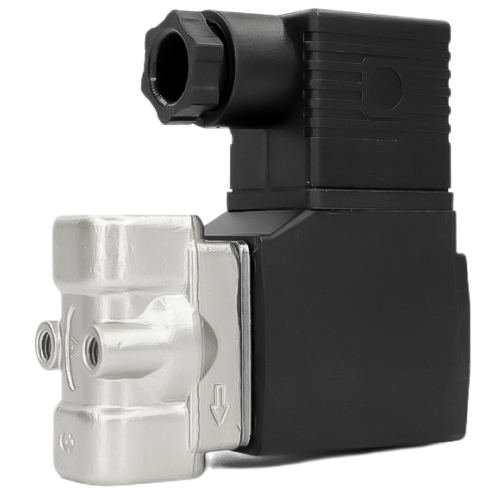

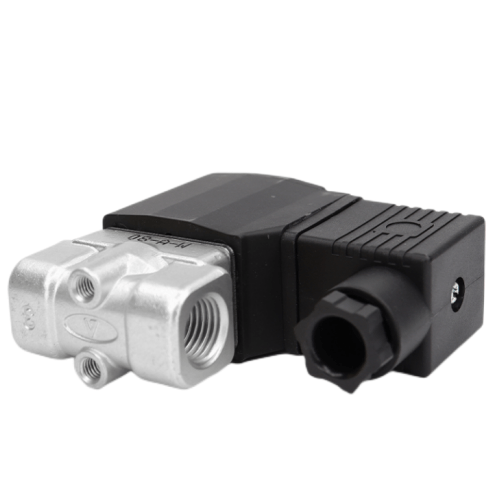

Airtac 2LH Fluid Solenoid Valve 2LH03006B
$47.68
Regular price
$55.18
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2LH03006B
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Direct-acting normally closed 2/2-way solenoid valve with rapid and responsive switching characteristics;
2、Wide operating pressure range, available in High-Pressure (H) Type and Standard Type configurations;
3、Compact structure with minimized dimensions, lightweight design, and tool-free assembly for maintenance convenience;
4、SUS304 stainless steel valve body construction. Features H-class heat-resistant coil insulation and PTFE (Teflon®) seals, ensuring compatibility with multiple media types including high-temperature water and saturated steam applications;
5、IP65-rated coil protection with wiring options: Direct Lead Wire or DIN Connector configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2LH
Installation requirements:
Install horizontally with arrow aligned to flow direction.
Use 100-mesh inline filter (≥25μm filtration).
Bleed air pockets during initial commissioning.
Not suitable for viscous fluids >30cSt.
Maintenance note:
Perform pressure decay test every 2,000 operating hours.
Replace seals immediately if pH exposure exceeds 2-12 range.
Use thread sealant only on external ports (never on O-ring surfaces).
2、Wide operating pressure range, available in High-Pressure (H) Type and Standard Type configurations;
3、Compact structure with minimized dimensions, lightweight design, and tool-free assembly for maintenance convenience;
4、SUS304 stainless steel valve body construction. Features H-class heat-resistant coil insulation and PTFE (Teflon®) seals, ensuring compatibility with multiple media types including high-temperature water and saturated steam applications;
5、IP65-rated coil protection with wiring options: Direct Lead Wire or DIN Connector configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2LH
AirTAC 2LH03006B Fluid Solenoid Valve Specifications
- Model: 2LH03006B
- Type: 2-position direct-acting (3-way normally closed)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.05–1.0 MPa (liquid compatible)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 420g ±5% (with coil)
- Dimensions: 85mm(L) × 45mm(W) × 50mm(H)
- Seal material: FKM fluorocarbon rubber (chemical-resistant)
- Temperature range: -10℃ to 80℃ (medium temp ≤60℃)
- Power consumption: 3.5W (DC24V), 5.5VA (AC)
- Protection rating: IP67 (dustproof & temporary immersion)
- Response time: ≤50ms (at 0.5MPa)
- Flow rate: 15L/min (water at 0.5MPa)
- Port thread depth: 12mm (with O-ring seal)
High-flow liquid control valve with reinforced epoxy-coated coil housing. Features brass main body with triple-layer sealing (primary PTFE, secondary FKM, backup NBR) for aggressive media handling. Designed for 100,000+ cycle durability with ≤1% leakage rate under 1.0MPa test pressure.
Typical Applications:
- Industrial water treatment systems
- Chemical dosing pumps
- Beverage filling machine liquid control
- Coolant circulation systems in CNC machines
- Mobile hydraulic oil control units
- UV sterilization equipment fluid circuits
Installation requirements:
Install horizontally with arrow aligned to flow direction.
Use 100-mesh inline filter (≥25μm filtration).
Bleed air pockets during initial commissioning.
Not suitable for viscous fluids >30cSt.
Maintenance note:
Perform pressure decay test every 2,000 operating hours.
Replace seals immediately if pH exposure exceeds 2-12 range.
Use thread sealant only on external ports (never on O-ring surfaces).
| Property | Property Value |
|---|---|
| sku | 2LH03006B |
| Port Size | PT1/8 |
| Flow Aperture | <2mm> |
| Coil Voltage | DC24V |
