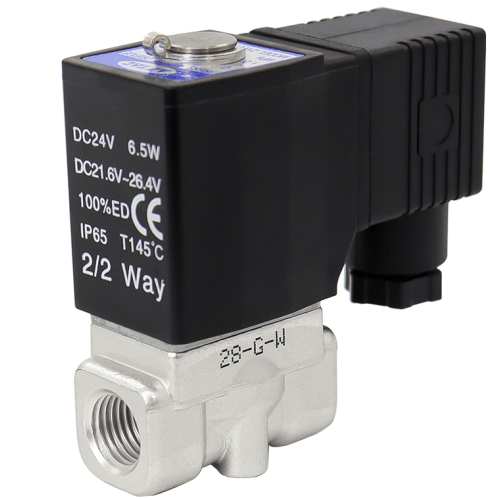

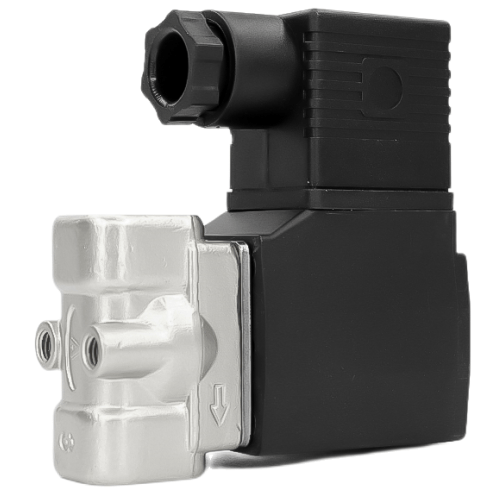

Airtac 2LH Fluid Solenoid Valve 2LH05015CI
2、Wide operating pressure range, available in High-Pressure (H) Type and Standard Type configurations;
3、Compact structure with minimized dimensions, lightweight design, and tool-free assembly for maintenance convenience;
4、SUS304 stainless steel valve body construction. Features H-class heat-resistant coil insulation and PTFE (Teflon®) seals, ensuring compatibility with multiple media types including high-temperature water and saturated steam applications;
5、IP65-rated coil protection with wiring options: Direct Lead Wire or DIN Connector configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2LH
AirTAC 2LH05015CI Fluid Solenoid Valve Technical Specifications
- Model: 2LH05015CI
- Type: 2-position, 5-port direct-acting (water/oil compatible)
- Port size: G1/2" (BSPP thread)
- Operating pressure: 0.1–1.0 MPa
- Voltage options: DC24V (±10%), AC220V 50/60Hz
- Fluid temperature range: -5℃ to 80℃
- Ambient temperature: -20℃ to 60℃
- Body material: Brass (nickel-plated)
- Seal material: FKM fluorocarbon rubber
- Flow coefficient (Cv): 2.5
- Response time: ≤30ms (energized), ≤50ms (de-energized)
- Protection rating: IP67 (coil)/IP65 (valve body)
- Weight: 520g ±3% (excluding fittings)
- Dimensions: 120mm(L) × 60mm(W) × 80mm(H)
High-flow solenoid valve with corrosion-resistant construction, designed for aggressive liquid media control. Features manual override capability and zero pressure differential operation. Compatible with water, light oils, and non-abrasive fluids (≤500 cSt viscosity). Requires 50μm filtration upstream.
- Industrial water treatment systems
- Food processing equipment lubrication circuits
- Coolant control in CNC machining centers
- Hydraulic unit pressure regulation
- Chemical dosing systems (pH neutral solutions)
Installation note:
Mount horizontally with coil upright. Flush system before installation.
Allow 20mm clearance around valve for heat dissipation. Not suitable for
continuous duty cycles exceeding 80% without auxiliary cooling.
| Property | Property Value |
|---|---|
| sku | 2LH05015CI |
| Port Size | PT 1/2 |
| Flow Aperture | <4mm> |
| Coil Voltage | AC 110V |
