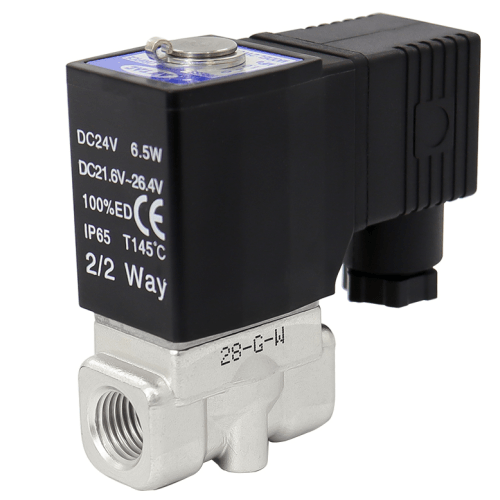

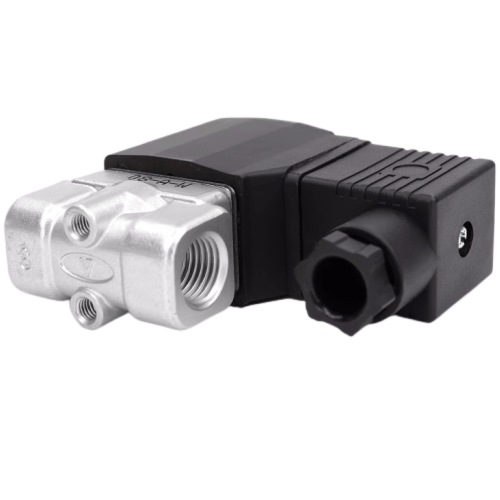

Airtac 2SH High Pressure Solenoid Valve 2SH03008F
1. Direct-acting normally closed 2-port 2-position configuration, ensuring rapid and sensitive directional switching;
2. Extensive pressure range compatibility with model options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T);
3. Compact structure with minimized dimensions and lightweight design for convenient installation and maintenance;
4. SUS304 stainless steel body construction, B-class thermal-rated solenoid coil. Standard FPM (Fluororubber) seals compatible with multiple media. Custom seal materials available through our technical department;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AIRTAC | Series: 2SH
AirTAC 2SH03008F High-Pressure Solenoid Valve Specifications
- Model: 2SH03008F
- Type: 2-position, 5-way direct-acting (high-pressure series)
- Port size: PT1/4 (G1/4 thread standard)
- Operating pressure range: 0.5–16 MPa (72–2,320 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Maximum flow rate: 1,800 NL/min (ANR, at 0.7 MPa)
- Weight: 600g ±2% (including coil and connector)
- Dimensions: 90mm(L) × 50mm(W) × 65mm(H) (body only, excludes fittings)
- Seal material: FKM fluorocarbon rubber (standard), EPDM optional
- Temperature range: -10℃ to 120℃ (with FKM seals)
- Power consumption: 4.5W (DC24V), 5.5VA (AC220V)
- Protection rating: IP67 (coil protection)
- Response time: ≤15ms (at rated voltage)
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhausts)
Heavy-duty solenoid valve engineered for extreme pressure environments, featuring dual-coil heat dissipation design and reinforced brass body. Incorporates pressure-balancing spool technology for reliable switching under 16MPa loads. Compatible with ISO 15407-1 standards, with shock-resistant construction (up to 50m/s² vibration resistance). Requires 10μm filtration minimum.
- Hydraulic press emergency stop systems
- CNC machine tool clamping mechanisms
- High-pressure gas booster circuits
- Offshore drilling equipment controls
- Automotive brake testing rigs
- Plastic injection molding machines
Installation guidelines:
Mount horizontally with arrow direction matching flow. Maintain 20mm clearance for heat dissipation.
Use copper-free anti-seize compound on threads. Pre-charge system to ≥3MPa before initial activation.
Critical note:
Not compatible with phosphate ester fluids. Maximum 100% duty cycle only achievable
with ambient temperatures below 50℃. Requires surge protection for AC coils.
| Property | Property Value |
|---|---|
| sku | 2SH03008F |
| Port Size | PT1/4 |
| Flow Aperture | <2mm> |
| Coil Voltage | DC12V |
