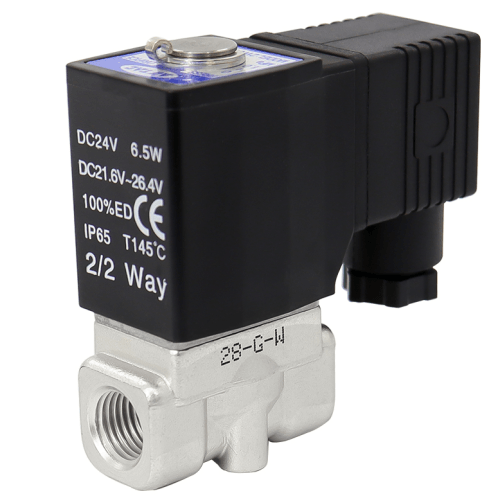

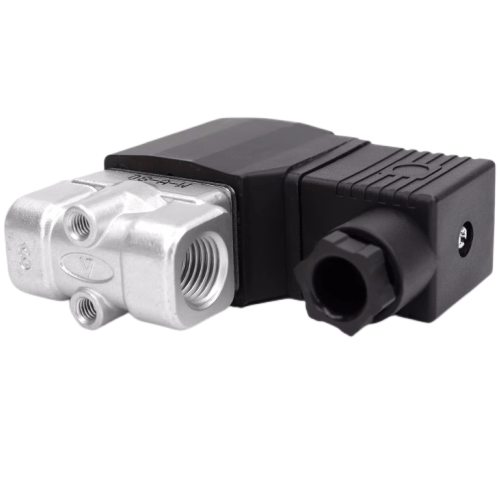

Airtac 2SH High Pressure Solenoid Valve 2SH05010B
1. Direct-acting normally closed 2-port 2-position configuration, ensuring rapid and sensitive directional switching;
2. Extensive pressure range compatibility with model options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T);
3. Compact structure with minimized dimensions and lightweight design for convenient installation and maintenance;
4. SUS304 stainless steel body construction, B-class thermal-rated solenoid coil. Standard FPM (Fluororubber) seals compatible with multiple media. Custom seal materials available through our technical department;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AIRTAC | Series: 2SH
AirTAC 2SH05010B High Pressure Solenoid Valve Technical Details
- Model: 2SH05010B
- Type: 2-position 5-way direct acting (high pressure series)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.5-16 MPa (72-2320 PSI)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: ~550g (including coil)
- Dimensions: 80mm(L) × 45mm(W) × 95mm(H)
- Seal material: FKM fluorocarbon rubber
- Temperature range: -10℃ to 120℃ (non-freezing)
- Power consumption: DC24V: 2.8W | AC110V: 4.5VA | AC220V: 5.5VA
- Protection rating: IP67 (coil), IP40 (valve body)
- Response time: ≤15ms (at 20℃ with rated voltage)
- Max flow rate: 850 L/min (ANR at 0.5MPa)
- Port configuration: 5 ports (P: pressure, A/B: outlets, R/S: exhausts)
High-pressure optimized solenoid valve with reinforced stainless steel plunger and corrosion-resistant aluminum alloy body. Features dual-coil heat dissipation design with overcurrent protection circuitry. Certified for continuous 24/7 operation with 10 million cycle durability. Requires 5μm filtration (25μm for temporary use).
- Hydraulic system pilot controls in injection molding machines
- High-pressure gas distribution in CNC machining centers
- Compressed air control for heavy construction equipment
- Industrial cleaning system valve clusters (≥10MPa)
- Energy sector pneumatic controls (oil/gas pipelines)
Installation requirements:
Maintain vertical mounting position (±15° tolerance). Install vibration dampeners
when used with pulsating pressures above 8MPa. Use copper-free lubricants for
maintenance. Allow 15mm clearance around exhaust ports.
Critical note:
Requires voltage stabilization (±5% tolerance). Not compatible with phosphate
ester-based hydraulic fluids. Always install downstream pressure gauges when
operating above 10MPa.
